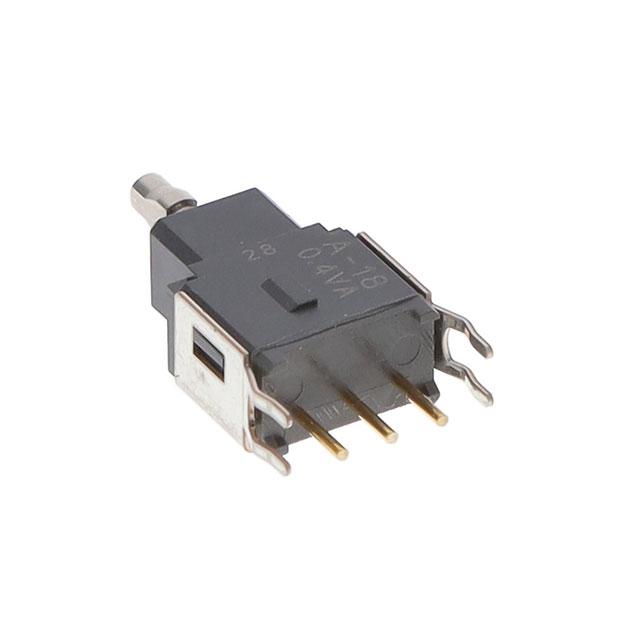

NKK Switches A18KB
Product Information
Actuator Shape:
Rectangular
DC Voltage Rating:
28V
Illuminated:
No
Mounting Type:
PCB
Contact Resistance:
50mΩ
Contact Current Rating:
100 mA
Operating Temperature Range:
-30 → +85°C
Contact Configuration:
SPDT
Case Material:
Glass Fibre Reinforced Polyamide, Polyamide
Minimum Operating Temperature:
-30°C
AC Voltage Rating:
28V
Mechanical Life:
50000Operations
Switch Operation:
(On)-Off-(On)
Maximum Operating Temperature:
+85°C
Terminal Type:
PC Pin
Contact Material:
Brass
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
50,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
28 V
Operating Temperature:
-30°C ~ 85°C
Approval Agency:
CSA, UL
Panel Cutout Dimensions:
-
Mechanical Life:
50,000 Cycles
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Package:
Bulk
Switch Function:
Mom-Off-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
SPDT
standardLeadTime:
18 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
A
Color - Actuator/Cap:
-
Actuator Type:
Actuator Arm, Cap Required
Illumination Voltage (Nominal):
-
Base Product Number:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search A18KB on website for other similar products.
We accept all major payment methods for all products including ET13460004. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with A18KB directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Rocker Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches A18KB. You can also check on our website or by contacting our customer support team for further order details on NKK Switches A18KB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13460004 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13460004.
Yes. We ship A18KB Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is A18KB. It is designed with an adorable rectangular shape actuator . It has approximately 28v DC voltage rating . Illumination Option no. The product is available in pcb configuration. It features a 50mω contact resistance. The rated contact current is 100 ma. The product has -30 → +85°c of operating temperature range. The contact is equipped with spdt configuration. The casing is constructed from highly stable glass fibre reinforced polyamide, polyamide material. Whereas, the minimum operating temperature of the product is -30°c. In addition, its AC voltage rating is 28v . The product also provide mechanical stability with 50000operations. It provides (on)-off-(on) switch operation. It has a maximum operating temperature of +85°c. The terminal is a pc pin type. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 50,000 cycles. Moreover, it has pc pin terminal style. 28 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. It is approved by csa, ul. The product also provide mechanical stability with 50,000 cycles. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in bulk package . It is designed as a mom-off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral spdt circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The splendid features of the product include process sealed. The product is available in through hole configuration. The product a, is a highly preferred choice for users. The product carries actuator arm, cap required actuator. The product is designated with the ear99 code number.
