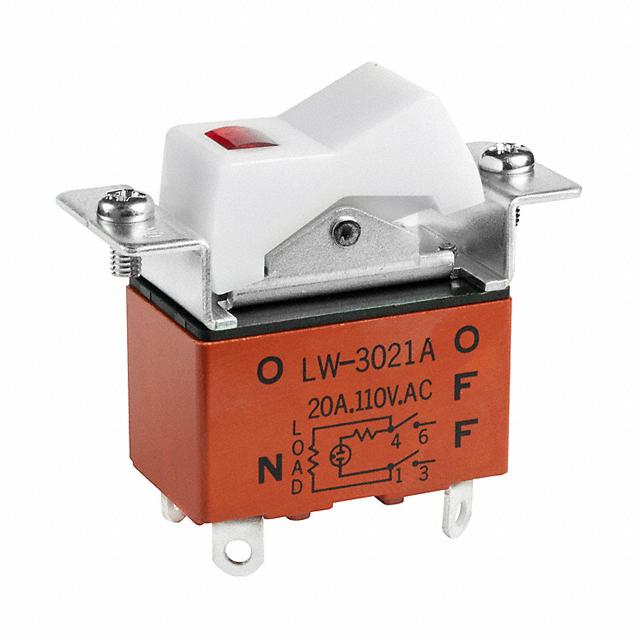

NKK Switches LW3021A
Product Information
Actuator Shape:
Rectangular
Contact Resistance:
10mΩ
Panel Cut Out Height:
28mm
Actuator Colour:
Red
Illuminated:
Yes
Mounting Type:
Screw Mount
Operating Temperature Range:
-10 → +50°C
Contact Current Rating:
20 A
Minimum Operating Temperature:
-10°C
Panel Cut Out Size:
14 x 28mm
Contact Configuration:
Double Pole Single Throw (DPST)
Case Material:
PC
Panel Cut Out Width:
14mm
AC Voltage Rating:
110V
Switch Operation:
On-None-Off
Maximum Operating Temperature:
+50°C
Terminal Type:
Solder
Contact Material:
Copper (Stationary), Silver Alloy (Movable)
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
10,000 Cycles
Termination Style:
Solder Lug
Operating Temperature:
-10°C ~ 50°C
Approval Agency:
CSA, UL
Panel Cutout Dimensions:
-
Mechanical Life:
30,000 Cycles
Voltage Rating - AC:
110 V
REACH Status:
REACH Unaffected
edacadModel:
LW3021A Models
edacadModelUrl:
/en/models/1056078
Illumination Type, Color:
Neon, Red
Package:
Tray
Switch Function:
On-Off
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
DPST
standardLeadTime:
9 Weeks
Current Rating (Amps):
20A (AC)
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount, Flange
Series:
LW
Color - Actuator/Cap:
White
Actuator Type:
Concave (Standard V) - Illuminated
Illumination Voltage (Nominal):
110 VAC
Base Product Number:
LW3021
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search LW3021A on website for other similar products.
We accept all major payment methods for all products including ET12064798. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with LW3021A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Rocker Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches LW3021A. You can also check on our website or by contacting our customer support team for further order details on NKK Switches LW3021A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12064798 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12064798.
Yes. We ship LW3021A Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is LW3021A. It is designed with an adorable rectangular shape actuator . It features a 10mω contact resistance. Its panel cut out is 28mm in height . The actuator has an adorable red colour. Illumination Option yes. The product is available in screw mount configuration. The product has -10 → +50°c of operating temperature range. The rated contact current is 20 a. Whereas, the minimum operating temperature of the product is -10°c. The panel cut out size includes 14 x 28mm. The contact is equipped with double pole single throw (dpst) configuration. The casing is constructed from highly stable pc material. Its panel cut out is 14mm wide . In addition, its AC voltage rating is 110v . It provides on-none-off switch operation. It has a maximum operating temperature of +50°c. The terminal is a solder type. The product is made from sturdy copper (stationary), silver alloy (movable) materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 10,000 cycles. Moreover, it has solder lug terminal style. The product has -10°c ~ 50°c operating temperature range. It is approved by csa, ul. The product also provide mechanical stability with 30,000 cycles. The product exhibits 110 v of AC voltage rating. In addition, it is reach unaffected. It is supplied with neon, red illumination. It is shipped in tray package . It is designed as a on-off switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral dpst circuit. It has a long 9 weeks standard lead time. Additionally, the product's output is 20a (ac). The product is available in panel mount, flange configuration. The product lw, is a highly preferred choice for users. It is made from white. The product carries concave (standard v) - illuminated actuator. The nominal illumination voltage of the product is 110 vac. Moreover, it corresponds to lw3021, a base product number of the product. The product is designated with the ear99 code number.
