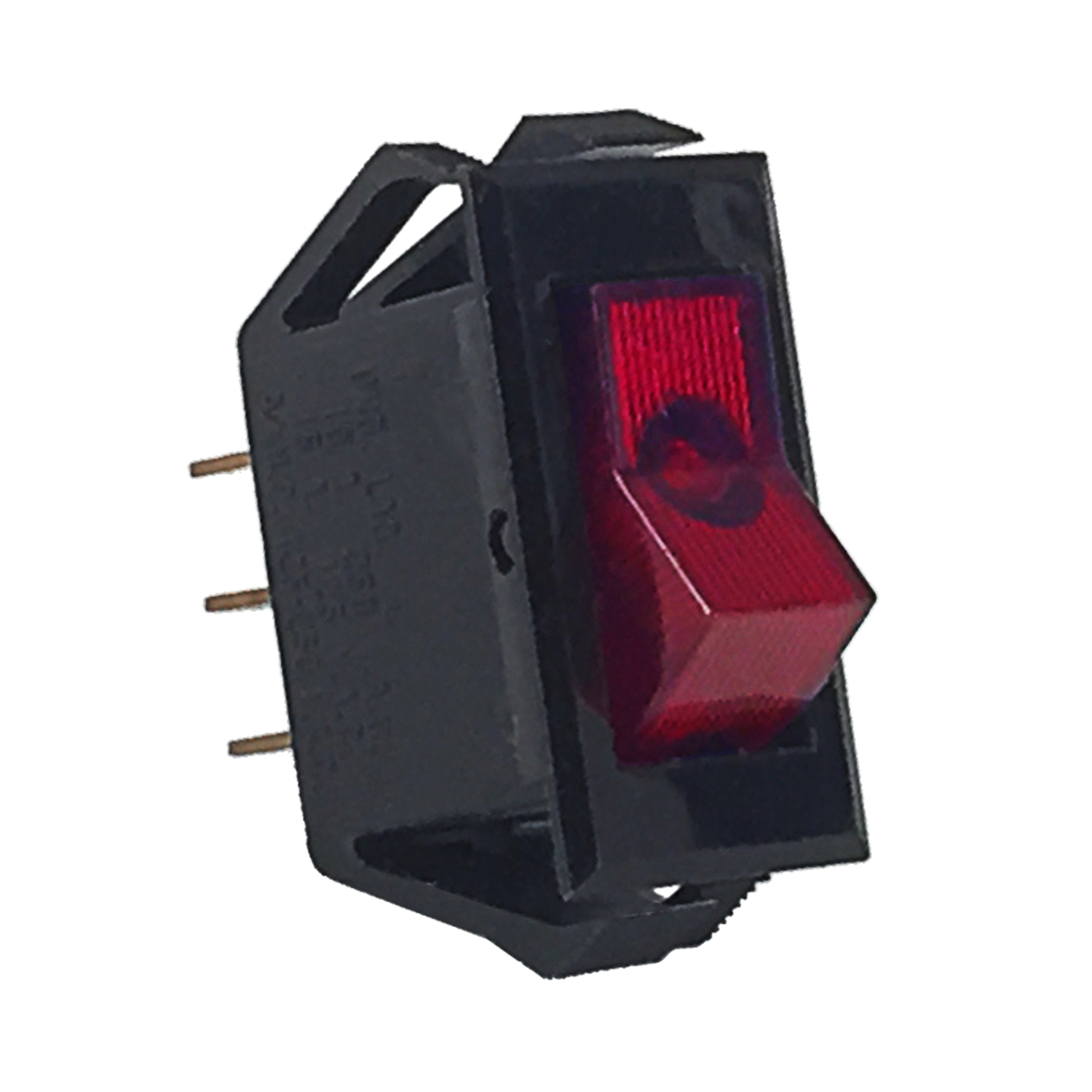

Carling Technologies LTA201-TR-B/125N
Product Information
Actuator Shape:
Rectangular
Panel Cut Out Height:
28.57mm
Actuator Colour:
Red
Illuminated:
Yes
Mounting Type:
Panel Mount
Operating Temperature Range:
-40 → +85°C
Contact Current Rating:
15 A
Minimum Operating Temperature:
-40°C
Contact Configuration:
Single Pole Double Throw (SPDT)
Case Material:
Nylon
Panel Cut Out Width:
13.97mm
AC Voltage Rating:
250V
Mechanical Life:
100000Operations
Panel Cut Out Size:
28.57 x 13.97mm
Maximum Operating Temperature:
+85°C
Terminal Type:
Quick Connect
Switch Operation:
On-None-Off
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
100,000 Cycles
Termination Style:
Quick Connect - 0.250" (6.3mm)
Operating Temperature:
0°C ~ 85°C
Approval Agency:
CSA, UL
Panel Cutout Dimensions:
Rectangular - 28.57mm x 13.97mm
Mechanical Life:
-
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
Illumination Type, Color:
Neon, Red
Package:
Box
Switch Function:
On-Off
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
SPST
standardLeadTime:
12 Weeks
Current Rating (Amps):
15A (AC)
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount, Snap-In
Series:
LTA
Color - Actuator/Cap:
Red
Actuator Type:
Concave (Standard V) - Illuminated
Illumination Voltage (Nominal):
125 VAC
Base Product Number:
LTA201
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search LTA201-TR-B/125N on website for other similar products.
We accept all major payment methods for all products including ET11905992. Please check your shopping cart at the time of order.
You can order Carling Technologies brand products with LTA201-TR-B/125N directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Rocker Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Carling Technologies LTA201-TR-B/125N. You can also check on our website or by contacting our customer support team for further order details on Carling Technologies LTA201-TR-B/125N.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11905992 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Carling Technologies" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11905992.
Yes. We ship LTA201-TR-B/125N Internationally to many countries around the world.
This is manufactured by Carling Technologies. The manufacturer part number is LTA201-TR-B/125N. It is designed with an adorable rectangular shape actuator . Its panel cut out is 28.57mm in height . The actuator has an adorable red colour. Illumination Option yes. The product is available in panel mount configuration. The product has -40 → +85°c of operating temperature range. The rated contact current is 15 a. Whereas, the minimum operating temperature of the product is -40°c. The contact is equipped with single pole double throw (spdt) configuration. The casing is constructed from highly stable nylon material. Its panel cut out is 13.97mm wide . In addition, its AC voltage rating is 250v . The product also provide mechanical stability with 100000operations. The panel cut out size includes 28.57 x 13.97mm. It has a maximum operating temperature of +85°c. The terminal is a quick connect type. It provides on-none-off switch operation. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 100,000 cycles. Moreover, it has quick connect - 0.250" (6.3mm) terminal style. The product has 0°c ~ 85°c operating temperature range. It is approved by csa, ul. It also has a rectangular - 28.57mm x 13.97mm dimensional features. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is supplied with neon, red illumination. It is shipped in box package . It is designed as a on-off switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral spst circuit. It has a long 12 weeks standard lead time. Additionally, the product's output is 15a (ac). The product is available in panel mount, snap-in configuration. The product lta, is a highly preferred choice for users. It is made from red. The product carries concave (standard v) - illuminated actuator. The nominal illumination voltage of the product is 125 vac. Moreover, it corresponds to lta201, a base product number of the product. The product is designated with the ear99 code number.
