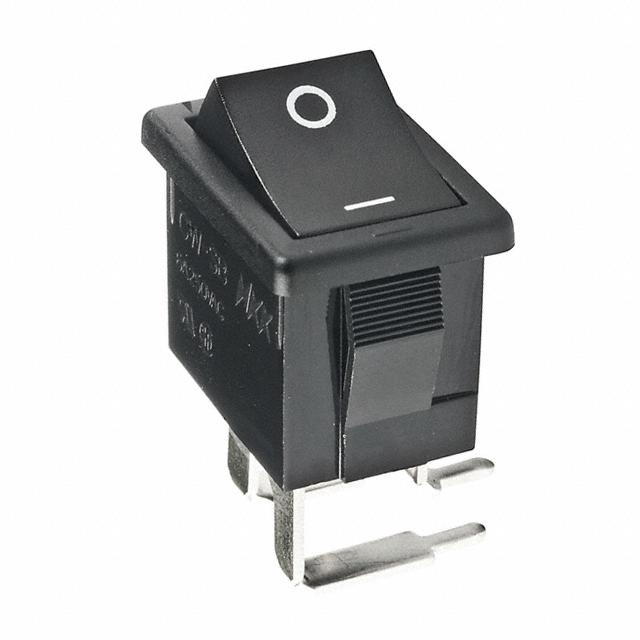

NKK Switches CWSB21AA1H
Product Information
Actuator Shape:
Rectangular
Contact Resistance:
20mΩ
Panel Cut Out Height:
19.2mm
Actuator Colour:
Black
Panel Cut Out Width:
12.9mm
Mounting Type:
Panel, Snap-In Mount
Operating Temperature Range:
-10 → +70°C
Contact Current Rating:
6 A
Contact Configuration:
Double Pole Single Throw (DPST)
Panel Cut Out Size:
12.9 x 19.2mm
Terminal Type:
Quick Connect, Solder Lug
Case Material:
Polyamide
Minimum Operating Temperature:
-10°C
AC Voltage Rating:
250V
Switch Operation:
On-None-Off
Maximum Operating Temperature:
+70°C
Contact Material:
Silver Alloy
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
10,000 Cycles
Termination Style:
PC Pin
Operating Temperature:
-10°C ~ 70°C
Approval Agency:
cULus
Panel Cutout Dimensions:
Rectangular - 19.20mm x 12.90mm
Mechanical Life:
30,000 Cycles
Voltage Rating - AC:
250 V
REACH Status:
REACH Unaffected
edacadModel:
CWSB21AA1H Models
edacadModelUrl:
/en/models/1052580
Illumination Type, Color:
-
Package:
Tray
Switch Function:
On-Off
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
O I
Circuit:
DPST
standardLeadTime:
18 Weeks
Current Rating (Amps):
6A (AC)
Ingress Protection:
-
Features:
Audible Click
Mounting Type:
Panel Mount, Snap-In, Right Angle
Series:
CWSB
Color - Actuator/Cap:
Black
Actuator Type:
Concave (Curved)
Illumination Voltage (Nominal):
-
Base Product Number:
CWSB21AA
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search CWSB21AA1H on website for other similar products.
We accept all major payment methods for all products including ET11817497. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with CWSB21AA1H directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Rocker Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches CWSB21AA1H. You can also check on our website or by contacting our customer support team for further order details on NKK Switches CWSB21AA1H.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11817497 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11817497.
Yes. We ship CWSB21AA1H Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is CWSB21AA1H. It is designed with an adorable rectangular shape actuator . It features a 20mω contact resistance. Its panel cut out is 19.2mm in height . The actuator has an adorable black colour. Its panel cut out is 12.9mm wide . The product is available in panel, snap-in mount configuration. The product has -10 → +70°c of operating temperature range. The rated contact current is 6 a. The contact is equipped with double pole single throw (dpst) configuration. The panel cut out size includes 12.9 x 19.2mm. The terminal is a quick connect, solder lug type. The casing is constructed from highly stable polyamide material. Whereas, the minimum operating temperature of the product is -10°c. In addition, its AC voltage rating is 250v . It provides on-none-off switch operation. It has a maximum operating temperature of +70°c. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 10,000 cycles. Moreover, it has pc pin terminal style. The product has -10°c ~ 70°c operating temperature range. It is approved by culus. It also has a rectangular - 19.20mm x 12.90mm dimensional features. The product also provide mechanical stability with 30,000 cycles. The product exhibits 250 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in tray package . It is designed as a on-off switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with o i. It has an integral dpst circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 6a (ac). The splendid features of the product include audible click. The product is available in panel mount, snap-in, right angle configuration. The product cwsb, is a highly preferred choice for users. It is made from black. The product carries concave (curved) actuator. Moreover, it corresponds to cwsb21aa, a base product number of the product. The product is designated with the ear99 code number.
