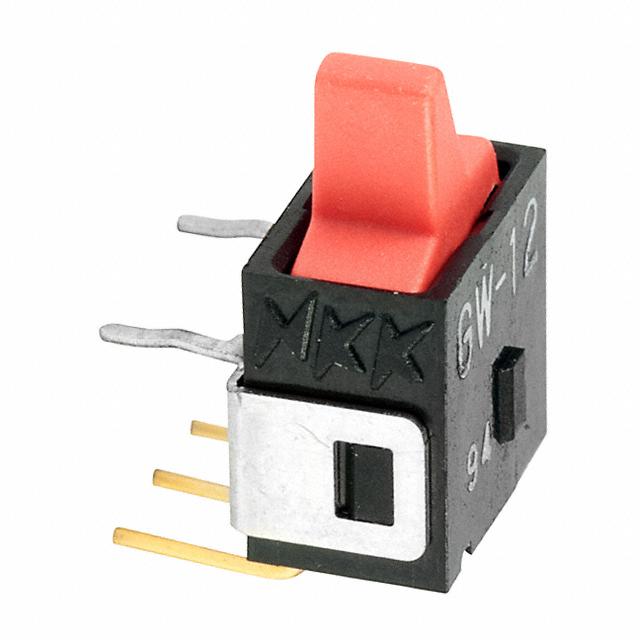

NKK Switches GW12LCH

GW12LCH NKK Switches
GW12LCH
NKK Switches

Product Information

Actuator Shape:
Rectangular
DC Voltage Rating:
28V
Actuator Colour:
Red
Illuminated:
No
Mounting Type:
PCB
Contact Resistance:
80mΩ
Contact Current Rating:
100 mA
Operating Temperature Range:
-30 → +85°C
Contact Configuration:
Single Pole Double Throw (SPDT)
Case Material:
Glass Fibre Reinforced Polyamide
Minimum Operating Temperature:
-30°C
AC Voltage Rating:
28V
Switch Operation:
On-(On)
Maximum Operating Temperature:
+85°C
Terminal Type:
PC Pin
Contact Material:
Phosphor Bronze
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
50,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
28 V
Operating Temperature:
-30°C ~ 85°C
Approval Agency:
CSA, UL
Panel Cutout Dimensions:
-
Mechanical Life:
50,000 Cycles
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
edacadModel:
GW12LCH Models
edacadModelUrl:
/en/models/1052001
Illumination Type, Color:
-
Package:
Tray
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
SPDT
standardLeadTime:
26 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
Sealed - Flux Protection
Mounting Type:
Through Hole, Right Angle
Series:
GW
Color - Actuator/Cap:
Red
Actuator Type:
Paddle
Illumination Voltage (Nominal):
-
Base Product Number:
GW12LC
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is GW12LCH. It is designed with an adorable rectangular shape actuator . It has approximately 28v DC voltage rating . The actuator has an adorable red colour. Illumination Option no. The product is available in pcb configuration. It features a 80mω contact resistance. The rated contact current is 100 ma. The product has -30 → +85°c of operating temperature range. The contact is equipped with single pole double throw (spdt) configuration. The casing is constructed from highly stable glass fibre reinforced polyamide material. Whereas, the minimum operating temperature of the product is -30°c. In addition, its AC voltage rating is 28v . It provides on-(on) switch operation. It has a maximum operating temperature of +85°c. The terminal is a pc pin type. The product is made from sturdy phosphor bronze materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 50,000 cycles. Moreover, it has pc pin terminal style. 28 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. It is approved by csa, ul. The product also provide mechanical stability with 50,000 cycles. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in tray package . It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral spdt circuit. It has a long 26 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The splendid features of the product include sealed - flux protection. The product is available in through hole, right angle configuration. The product gw, is a highly preferred choice for users. It is made from red. The product carries paddle actuator. Moreover, it corresponds to gw12lc, a base product number of the product. The product is designated with the ear99 code number.
