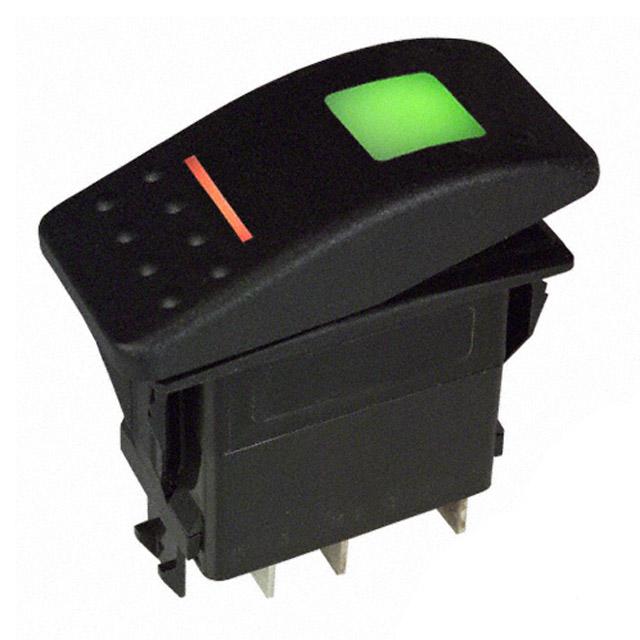

Carling Technologies VGD2GHNB-AAC00-000

VGD2GHNB-AAC00-000 Carling Technologies
VGD2GHNB-AAC00-000
VGD2GHNB-AAC00-000
Carling Technologies

Product Information

Actuator Shape:
Rectangular
DC Voltage Rating:
12V
Panel Cut Out Height:
36.83mm
Actuator Colour:
Black
Illuminated:
Yes
Mounting Type:
Panel Mount
IP Rating:
IP66, IP68
Contact Current Rating:
20 A
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +85°C
Panel Cut Out Size:
36.83 x 21.08mm
Contact Configuration:
Double Pole Single Throw (DPST)
Case Material:
Polyester
Panel Cut Out Width:
21.08mm
Contact Resistance:
10mΩ
Mechanical Life:
150000Operations
Switch Operation:
On-On-Off
Maximum Operating Temperature:
+85°C
Terminal Type:
Quick Connect
Contact Material:
Silver
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
100,000 Cycles
Termination Style:
Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC:
12 V
Operating Temperature:
-40°C ~ 85°C
Approval Agency:
CSA, UL, VDE
Panel Cutout Dimensions:
Rectangular - 36.83mm x 21.08mm
Mechanical Life:
100,000 Cycles
Color - Actuator/Cap:
Black
REACH Status:
REACH Unaffected
Illumination Type, Color:
LED, Amber/Green
Switch Function:
On-On-Off
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
SPDT
standardLeadTime:
8 Weeks
Current Rating (Amps):
20A (DC)
Ingress Protection:
IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Features:
-
Mounting Type:
Panel Mount, Snap-In
Series:
Contura® V
Packaging:
Bulk
Actuator Type:
Convex (Reverse V) - Illuminated
Illumination Voltage (Nominal):
12 VDC
Base Product Number:
VGD2GHNB
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Carling Technologies. The manufacturer part number is VGD2GHNB-AAC00-000. It is designed with an adorable rectangular shape actuator . It has approximately 12v DC voltage rating . Its panel cut out is 36.83mm in height . The actuator has an adorable black colour. Illumination Option yes. The product is available in panel mount configuration. It is IP rated with ip66, ip68. The rated contact current is 20 a. Whereas, the minimum operating temperature of the product is -40°c. The product has -40 → +85°c of operating temperature range. The panel cut out size includes 36.83 x 21.08mm. The contact is equipped with double pole single throw (dpst) configuration. The casing is constructed from highly stable polyester material. Its panel cut out is 21.08mm wide . It features a 10mω contact resistance. The product also provide mechanical stability with 150000operations. It provides on-on-off switch operation. It has a maximum operating temperature of +85°c. The terminal is a quick connect type. The product is made from sturdy silver materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 100,000 cycles. Moreover, it has quick connect - 0.250" (6.3mm) terminal style. 12 v of DC voltage rating. The product has -40°c ~ 85°c operating temperature range. It is approved by csa, ul, vde. It also has a rectangular - 36.83mm x 21.08mm dimensional features. The product also provide mechanical stability with 100,000 cycles. It is made from black. In addition, it is reach unaffected. It is supplied with led, amber/green illumination. It is designed as a on-on-off switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral spdt circuit. It has a long 8 weeks standard lead time. Additionally, the product's output is 20a (dc). It is IP rated with ip66/ip68 - dust tight, water resistant, waterproof. The product is available in panel mount, snap-in configuration. The product contura® v, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries convex (reverse v) - illuminated actuator. The nominal illumination voltage of the product is 12 vdc. Moreover, it corresponds to vgd2ghnb, a base product number of the product. The product is designated with the ear99 code number.
