Manufacturer : Carling Technologies
Manufacturer Part No : V6D1D66B-00000-000
Enrgtech Part No : ET10001243
Product Range : PolySwitch RXEF Series

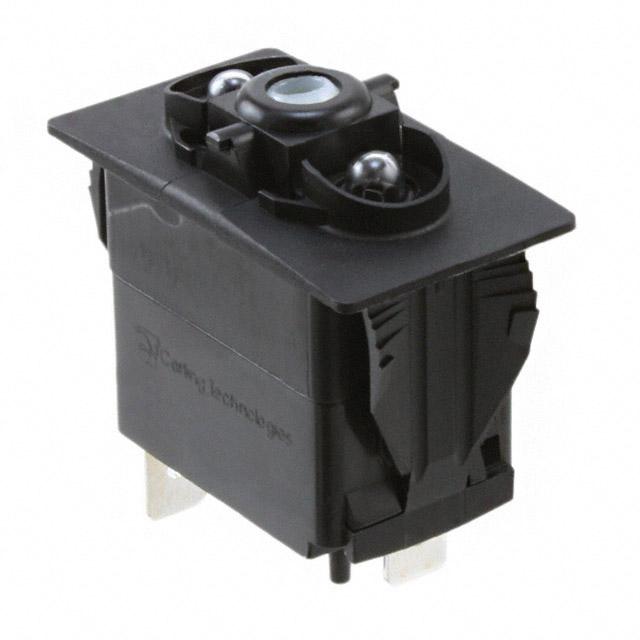

Carling Technologies V6D1D66B-00000-000

SWITCH ROCKER SPDT 20A 12V

Product Information

Actuator Shape : Rectangular
DC Voltage Rating : 12V
Panel Cut Out Height : 36.83mm
Illuminated : Yes
Mounting Type : Panel Mount
IP Rating : IP66, IP68
Contact Current Rating : 20 A @ 12 V dc
Minimum Operating Temperature : -40°C
Operating Temperature Range : -40 → +85°C
Panel Cut Out Size : 36.83 x 21.08mm
Contact Configuration : Single Pole Double Throw (SPDT)
Case Material : Polyester
Panel Cut Out Width : 21.08mm
Contact Resistance : 10mΩ
Mechanical Life : 150000Operations
Switch Operation : On-Off-On
Maximum Operating Temperature : +85°C
Terminal Type : Quick Connect
rohs : RoHS Certificate of Compliance
Contact Material : Silver
Manufacturer Standard Lead Time : 6 Weeks
Detailed Description : Rocker Switch SPDT 20A (DC) Panel Mount, Snap-In
Part Status : Active
Electrical Life : 50,000 Cycles
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
Panel Cutout Dimensions : Rectangular - 36.83mm x 21.08mm
Mechanical Life : 150,000 Cycles
Illumination Type, Color : Incandescent
Manufacturer : Carling Technologies
Switch Function : On-Off-On
Actuator Marking : Varies by Cap
Circuit : SPDT
Voltage Rating - DC : 12V
Current Rating (Amps) : 20A (DC)
Ingress Protection : IP66/68 - Dust Tight, Water Resistant, Waterproof
Mounting Type : Panel Mount, Snap-In
Series : V-Series Contura
Packaging : Bulk
Customer Reference :
Actuator Type : Actuator Arm, Cap Required - Illuminated
Illumination Voltage (Nominal) : 12 VAC/DC
