Mounting Type:
Surface Mount
Maximum Continuous Forward Current:
30A
Peak Non-Repetitive Forward Surge Current:
160A
Diode Technology:
Schottky
Package Type:
D2PAK
Number of Elements per Chip:
2
Pin Count:
3
Peak Reverse Repetitive Voltage:
100V
Manufacturer Standard Lead Time:
2 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Average Rectified (Io) (per Diode):
15A
Current - Reverse Leakage @ Vr:
675µA @ 100V
Operating Temperature - Junction:
-40°C ~ 150°C
Mounting Type:
Surface Mount
Diode Configuration:
1 Pair Common Cathode
Standard Package:
50
Voltage - Forward (Vf) (Max) @ If:
800mV @ 15A
Supplier Device Package:
D2PAK-3
Packaging:
Tape & Reel (TR)

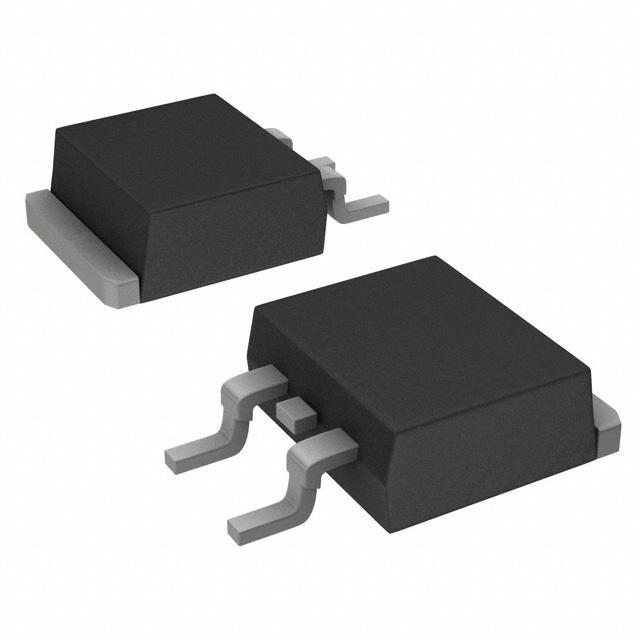

Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Voltage - DC Reverse (Vr) (Max):
100V
Diode Type:
Schottky
Speed:
Fast Recovery = 200mA (Io)
Manufacturer:
ON Semiconductor
This is manufactured by ON Semiconductor. The manufacturer part number is NTSB30U100CTG. The product is available in surface mount configuration. Furthermore, its maximum continuous forward current constitutes 30a. Moreover, a bespoke product has 160a peak non-repetitive forward surge current. The product utilizes schottky diode technology. The package is a sort of d2pak. It consists of 2 elements per chip. It contains 3 pins. While having the peak reverse repetitive 100v. It has typical 2 weeks of manufacturer standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The average rectified current at per diode is 15a. 675µa @ 100v is the reverse leakage value of a bespoke product. The product operate at temperatures ranging from -40°c ~ 150°c. The diode features a 1 pair common cathode configuration. It is available in the standard package of 50. The product has a maximum forward voltage of 800mv @ 15a. d2pak-3 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, the product comes in to-263-3, d²pak (2 leads + tab), to-263ab. While it has maximum reverse voltage of 100v. It is designed with a schottky diode. It has a robust speed of fast recovery = 200ma (io). The on semiconductor's product offers user-desired applications.
