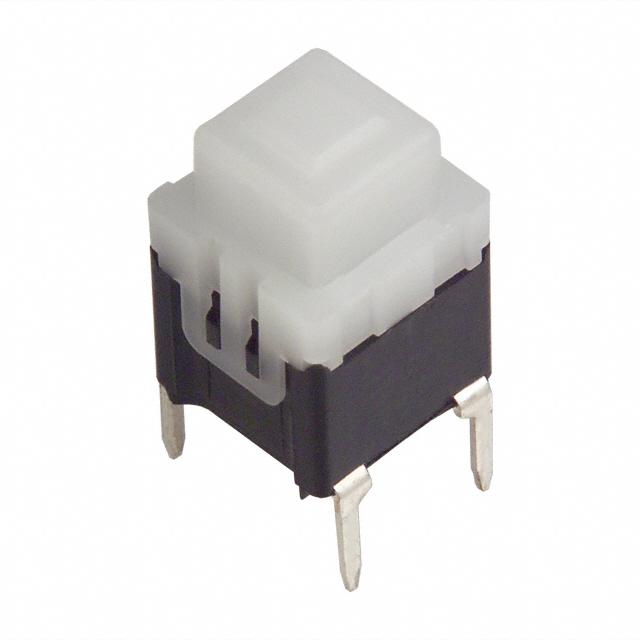

Panasonic Electronic Components ESE-20D323

ESE-20D323 Panasonic Electronic Components
Panasonic Electronic Components

Product Information

HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Voltage Rating - DC:
14 V
Operating Temperature:
-
Panel Cutout Dimensions:
-
Type:
Standard
edacadModel:
ESE-20D323 Models
edacadModelUrl:
/en/models/593512
Illumination Type, Color:
-
Switch Function:
Off-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
SPST-NO
standardLeadTime:
19 Weeks
Current Rating (Amps):
100mA (DC)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
ESE20D
Packaging:
Bulk
Color - Actuator/Cap:
White
Actuator Type:
Square, Button
Illumination Voltage (Nominal):
-
Base Product Number:
ESE-20
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is ESE-20D323. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. 14 v of DC voltage rating. It comes in standard configuration. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral spst-no circuit. It has a long 19 weeks standard lead time. Additionally, the product's output is 100ma (dc). The product is available in through hole configuration. The product ese20d, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It is made from white. The product carries square, button actuator. Moreover, it corresponds to ese-20, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ESE-20C, ESE-20D ~(Datasheets)
pdf icon
Mult Devs Label 22/Nov/2022(PCN Packaging)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ESE-20D323 on website for other similar products.
We accept all major payment methods for all products including ET12108717. Please check your shopping cart at the time of order.
You can order Panasonic Electronic Components brand products with ESE-20D323 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Pushbutton Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electronic Components ESE-20D323. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electronic Components ESE-20D323.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12108717 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electronic Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12108717.
Yes. We ship ESE-20D323 Internationally to many countries around the world.
