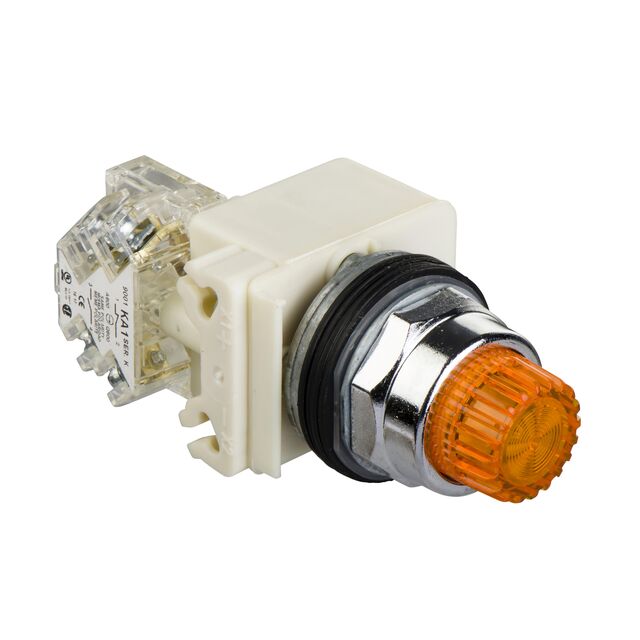

Schneider Electric Harmony 9001K Series Illuminated Push Button, Panel Mount, 30mm Cutout, SPDT, IP66

9001K2L38LYAH13 Schneider Electric Harmony 9001K Series Illuminated Push Button, Panel Mount, 30mm Cutout, SPDT, IP66
9001K2L38LYAH13
9001K2L38LYAH13
9001K2L38LYAH13 Schneider Electric Harmony 9001K Series Illuminated Push Button, Panel Mount, 30mm Cutout, SPDT, IP66
Schneider Electric

Product Information

Actuator Colour:
Amber
Mount Type:
Panel
Legend:
Unmarked
Width:
54 mm
Actuator Style:
Octagonal
Contact DC Voltage:
120V
Illuminated:
Yes
Product Type:
Push Button Switch
Maximum Operating Temperature:
70°C
Terminal Type:
Screw
IP Rating:
IP66
Contact AC Voltage:
120V
Switch Configuration:
1 CO
LED Colour:
Yellow
Panel Cutout Size:
30 mm
Length:
103mm
Standards/Approvals:
CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
Contact Configuration:
SPDT
Switch Operation:
Spring Return
Series:
Harmony 9001K
Height:
42mm
Minimum Operating Temperature:
-25°C
Switch Contact Current:
0.55 A
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Electrical Life:
-
Termination Style:
Screw Terminal
Voltage Rating - DC:
125 V
Operating Temperature:
-25°C ~ 70°C
Panel Cutout Dimensions:
Circular - 30.00mm Dia
Mechanical Life:
5,000,000 Cycles
Type:
Standard, Illuminated
Color - Actuator/Cap:
Amber
title:
9001K2L38LYAH13
REACH Status:
REACH Affected
Illumination Type, Color:
LED, Amber
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
SPDT
standardLeadTime:
5 Weeks
Current Rating (Amps):
550mA (DC)
Ingress Protection:
IP66 - Dust Tight, Water Resistant
Features:
-
Mounting Type:
Panel Mount, Front
Series:
Harmony 9001K
Packaging:
Box
Actuator Type:
Round, Button
Illumination Voltage (Nominal):
120 VAC/DC
ECCN:
EAR99
Checking for live stock

This is Harmony 9001K Series Illuminated Push Button Panel Mount 30mm Cutout SPDT IP66 manufactured by Schneider Electric. The manufacturer part number is 9001K2L38LYAH13. The actuator has an adorable amber colour. It has a panel type mount . Legend Information: unmarked. Furthermore, the product is 54 mm wide. Illumination Option yes. push button switch is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 70°c. The terminal is a screw type. It is IP rated with ip66. It is created with a/an 1 co switch configuration . The LED has an adorable yellow colour. Its accurate length is 103mm. The contact is equipped with spdt configuration. It provides spring return switch operation. The product harmony 9001k, is a highly preferred choice for users. In addition, the height is 42mm. Whereas, the minimum operating temperature of the product is -25°c. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has screw terminal terminal style. 125 v of DC voltage rating. The product has -25°c ~ 70°c operating temperature range. It also has a circular - 30.00mm dia dimensional features. The product also provide mechanical stability with 5,000,000 cycles. It comes in standard, illuminated configuration. It is made from amber. In addition, it is reach affected. It is supplied with led, amber illumination. It is designed as a on-on switching function. Its typical moisture sensitivity level is not applicable. It has an integral spdt circuit. It has a long 5 weeks standard lead time. Additionally, the product's output is 550ma (dc). It is IP rated with ip66 - dust tight, water resistant. The product is available in panel mount, front configuration. In addition, box is the available packaging type of the product. The product carries round, button actuator. The nominal illumination voltage of the product is 120 vac/dc. The product is designated with the ear99 code number.
