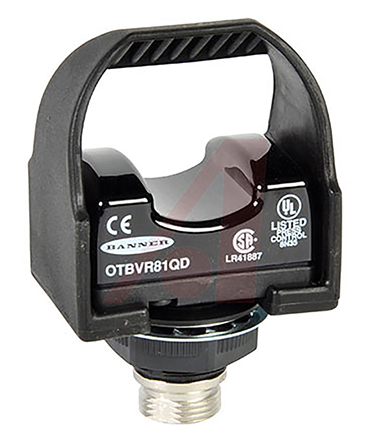

Opto Touch Switch The Turck Banner OTB series of touch-activated photoelectric switches are designed to replace capacitive touch switches and mechanical push buttons. The OTB series of touch button switches are highly resistant to EMI, RFI and ambient light interference. Contact configuration SPDT 1 x N/O, 1 x N/C LED indication of power on and output activated Black polysulfone (VALOX)housing, epoxy-encapsulated electronics, IP67 Switching current : 7A max. (resistive load) Operating temperature range: -20 to +50 °C 'Mechanical life: Fifty million operations. Ambient light immunity 120000 lux Reduces the risk of repetitive strain injuries Mounting M30 thread, nuts/washer included Dimension (mm): 60 x 44 x 36 LWH (excluding threaded portion) Zero Force & Opto Touch Switches Actuated by sensors using patented Field Effect Technology which converts the touch of the operators hand into an electrical output. The two sensors have to be touched within 0.2 seconds of each other and can differentiate between a person's hand and most solid objects/substances, as well as resistance to accidental actuation via clothing, fluid, splashes etc.,There are built in diagnostic safeguards for power-up protection, foreign object intervention and film/deposit interference which all result in LED indication.
For more information please check the datasheets.
