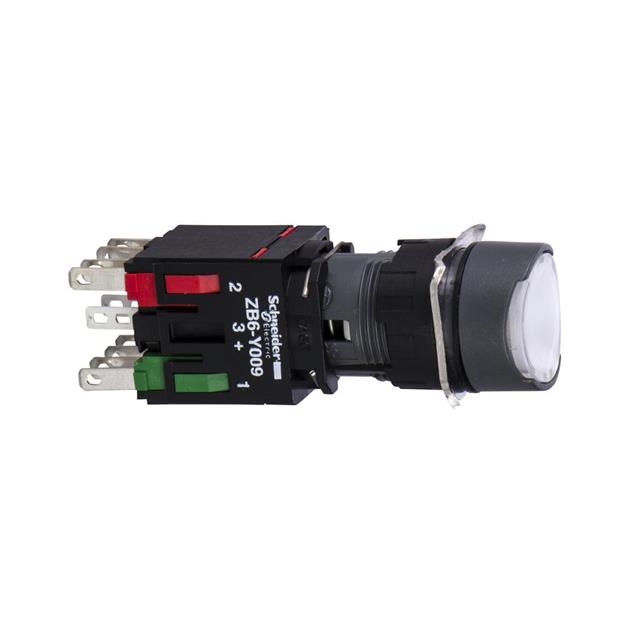

Schneider Electric Harmony XB6 Illuminated White Push Button NO/NC Spring Return

XB6AW1B5B Schneider Electric Harmony XB6 Illuminated White Push Button NO/NC Spring Return
XB6AW1B5B
XB6AW1B5B Schneider Electric Harmony XB6 Illuminated White Push Button NO/NC Spring Return
Schneider Electric

Product Information

Actuator Colour:
White
Legend:
Unmarked
Width:
18 mm
Actuator Style:
Round
Contact DC Voltage:
24V
Illuminated:
Yes
Product Type:
Push Button Switch
Maximum Operating Temperature:
70°C
Terminal Type:
FASTON
Minimum Operating Temperature:
-25°C
IP Rating:
IP65
Contact AC Voltage:
24V
Switch Configuration:
1 NO/1 NC
LED Colour:
White
Panel Cutout Size:
16 mm
Length:
57mm
Standards/Approvals:
CSA C22.2 No 14EN/IEC 60947-5-5JIS C 4520EN/IEC 60947-1JIS C 852EN/IEC 60947-5-1
Contact Configuration:
SPDT
Switch Operation:
Slide
Series:
Harmony XB6
Height:
18mm
Switch Contact Current:
3 A
HTSUS:
8536.50.9033
RoHS Status:
ROHS3 Compliant
Electrical Life:
1,000,000 Cycles
Termination Style:
Quick Connect - 0.110" (2.8mm)
Voltage Rating - DC:
125 V
Operating Temperature:
-25°C ~ 70°C
Panel Cutout Dimensions:
Circular - 16.00mm Dia
Mechanical Life:
-
Type:
Standard, Illuminated
Color - Actuator/Cap:
White
title:
XB6AW1B5B
Voltage Rating - AC:
120 V
Illumination Type, Color:
LED, White
Switch Function:
On-Off, Off-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
DPST-NO/NC
standardLeadTime:
5 Weeks
Current Rating (Amps):
3A (AC), 220mA (DC)
Ingress Protection:
IP65 - Dust Tight, Water Resistant
Features:
-
Mounting Type:
Panel Mount, Front
Series:
Harmony XB6
Packaging:
Box
Actuator Type:
Round, Button, Flush
Illumination Voltage (Nominal):
12 VDC
ECCN:
EAR99
Checking for live stock

This is Harmony XB6 Illuminated White Push Button NO/NC Spring Return manufactured by Schneider Electric. The manufacturer part number is XB6AW1B5B. The actuator has an adorable white colour. Legend Information: unmarked. Furthermore, the product is 18 mm wide. Illumination Option yes. push button switch is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 70°c. The terminal is a faston type. Whereas, the minimum operating temperature of the product is -25°c. It is IP rated with ip65. It is created with a/an 1 no/1 nc switch configuration . The LED has an adorable white colour. Its accurate length is 57mm. The contact is equipped with spdt configuration. It provides slide switch operation. The product harmony xb6, is a highly preferred choice for users. In addition, the height is 18mm. It is assigned with possible HTSUS value of 8536.50.9033. The product is rohs3 compliant. The product offers long-lasting services of 1,000,000 cycles. Moreover, it has quick connect - 0.110" (2.8mm) terminal style. 125 v of DC voltage rating. The product has -25°c ~ 70°c operating temperature range. It also has a circular - 16.00mm dia dimensional features. It comes in standard, illuminated configuration. It is made from white. The product exhibits 120 v of AC voltage rating. It is supplied with led, white illumination. It is designed as a on-off, off-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral dpst-no/nc circuit. It has a long 5 weeks standard lead time. Additionally, the product's output is 3a (ac), 220ma (dc). It is IP rated with ip65 - dust tight, water resistant. The product is available in panel mount, front configuration. In addition, box is the available packaging type of the product. The product carries round, button, flush actuator. The nominal illumination voltage of the product is 12 vdc. The product is designated with the ear99 code number.

pdf icon
Datasheet-XB6AW1B5B(Technical Reference)
pdf icon
Catalogue - Push Buttons and Operator Interface(Technical Reference)
pdf icon
Instruction Sheet - XB6 Series(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
XB6AW1B5B Datasheet(Datasheets)
