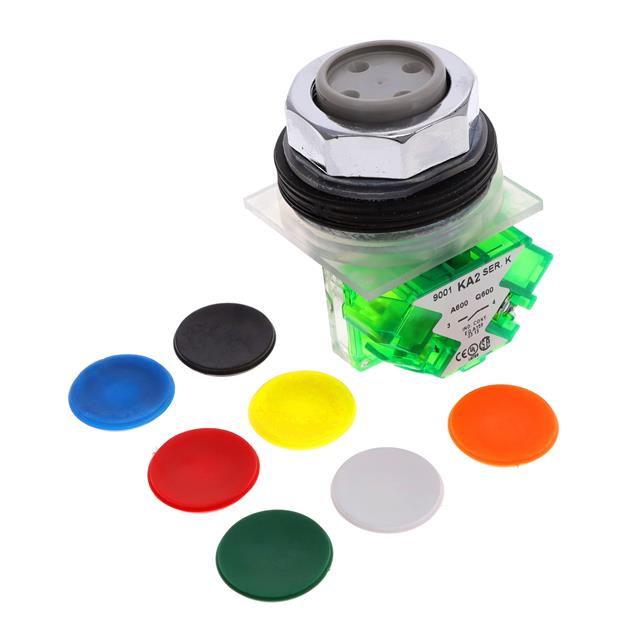

Actuator Style:
Octagonal
Switch Operation:
Spring Return
Contact DC Voltage:
125V
Illuminated:
No
IP Rating:
IP66
Series:
Harmony 9001K
Contact AC Voltage:
600V
Switch Configuration:
1 NO
LED Colour:
Black, White, Blue, Green, Orange, Red, Yellow
Panel Cutout Size:
30 mm
Width:
5.588 cm
Length:
9.144cm
Standards/Approvals:
CSA C22.2 No. 14, UL 508, EN/IEC 60947-5-4, JIS C 4520, EN/IEC 60947-5-1, JIS C 852, EN/IEC 60947-1
Minimum Operating Temperature:
-25°C
Switch Contact Current:
10 A
Terminal Type:
Screw
Product Type:
Push Button Switch
Maximum Operating Temperature:
70°C
Legend:
Blank
Contact Configuration:
SPST
Mount Type:
Panel
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Electrical Life:
-
Termination Style:
Screw Terminal
Voltage Rating - DC:
125 V
Operating Temperature:
-25°C ~ 70°C
Panel Cutout Dimensions:
Circular - 30.00mm Dia
Mechanical Life:
5,000,000 Cycles
Type:
Standard
Color - Actuator/Cap:
-
title:
9001KR3UH5
Voltage Rating - AC:
240 V
REACH Status:
REACH Affected
Illumination Type, Color:
-
Switch Function:
Off-On
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
SPST-NO
standardLeadTime:
5 Weeks
Current Rating (Amps):
3A (AC), 550mA (DC)
Ingress Protection:
IP66 - Dust Tight, Water Resistant
Features:
-
Mounting Type:
Panel Mount, Front
Series:
Harmony 9001K
Packaging:
Box
Actuator Type:
Round, Button
Illumination Voltage (Nominal):
-
ECCN:
EAR99
