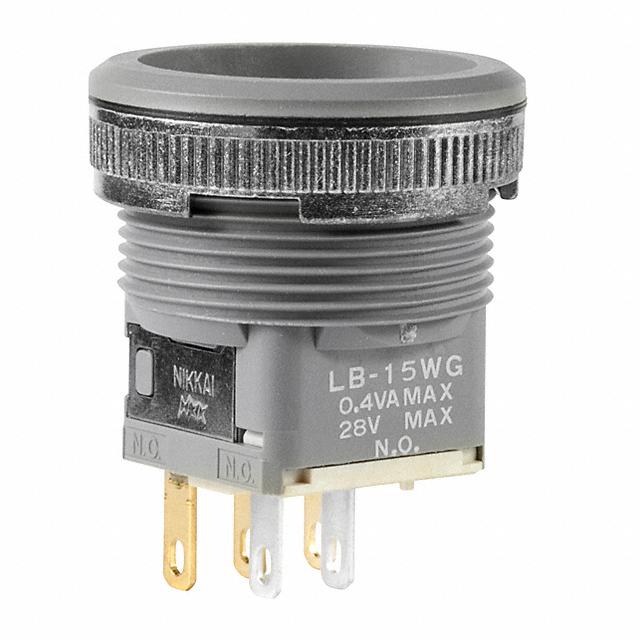

NKK Switches LB15WGG01

LB15WGG01 NKK Switches
LB15WGG01
NKK Switches

Product Information

Illuminated:
No
Mounting Type:
Panel Mount
IP Rating:
IP65
Contact Current Rating:
0.4VA
Series:
LB
Voltage Rating:
28V
Contact DC Voltage Rating:
28V
Push Button Style:
Round
Contact Configuration:
SPDT
Case Colour:
Grey
Panel Cut Out Diameter:
22mm
Manufacturer Part No.:
LB15WGG01
Contact AC Voltage Rating:
28V
Terminal Type:
Quick Connect, Solder
Switch Operation:
On-(On)
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Electrical Life:
100,000 Cycles
Termination Style:
Solder, Quick Connect - 0.110" (2.8mm)
Voltage Rating - DC:
28 V
Operating Temperature:
-25°C ~ 70°C
Panel Cutout Dimensions:
Circular - 22.00mm Dia
Mechanical Life:
1,000,000 Cycles
Type:
Standard
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Package:
Bulk
Switch Function:
On-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
SPDT
standardLeadTime:
18 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
IP65 - Dust Tight, Water Resistant
Features:
-
Mounting Type:
Panel Mount, Front
Series:
LB
Color - Actuator/Cap:
-
Actuator Type:
Plunger for Cap
Illumination Voltage (Nominal):
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is LB15WGG01. Illumination Option no. The product is available in panel mount configuration. It is IP rated with ip65. The rated contact current is 0.4va. The product lb, is a highly preferred choice for users. Moreover, the product has a nominal 28v voltage rating. It has about 28v contact DC voltage rating . This pushbutton has a round style pushbutton and is easy to use. The contact is equipped with spdt configuration. The casing is finished with an adorable grey colour. The panel has a 22mm cut-out diameter. The product has an assigned lb15wgg01 manufacturer part number. Its contact AC voltage rating is about 28v . The terminal is a quick connect, solder type. It provides on-(on) switch operation. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. The product offers long-lasting services of 100,000 cycles. Moreover, it has solder, quick connect - 0.110" (2.8mm) terminal style. 28 v of DC voltage rating. The product has -25°c ~ 70°c operating temperature range. It also has a circular - 22.00mm dia dimensional features. The product also provide mechanical stability with 1,000,000 cycles. It comes in standard configuration. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in bulk package . It is designed as a on-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral spdt circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). It is IP rated with ip65 - dust tight, water resistant. The product is available in panel mount, front configuration. The product carries plunger for cap actuator. The product is designated with the ear99 code number.

pdf icon
Datasheet LB15WGG01(Technical Reference)
pdf icon
LB Series Panel Seal Pushbuttons(Datasheets)
pdf icon
Epoxy Seal color chg 24/JUN/2022(PCN Design/Specification)
pdf icon
LB Epoxy Seal 21/Apr/2009(PCN Design/Specification)
pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
