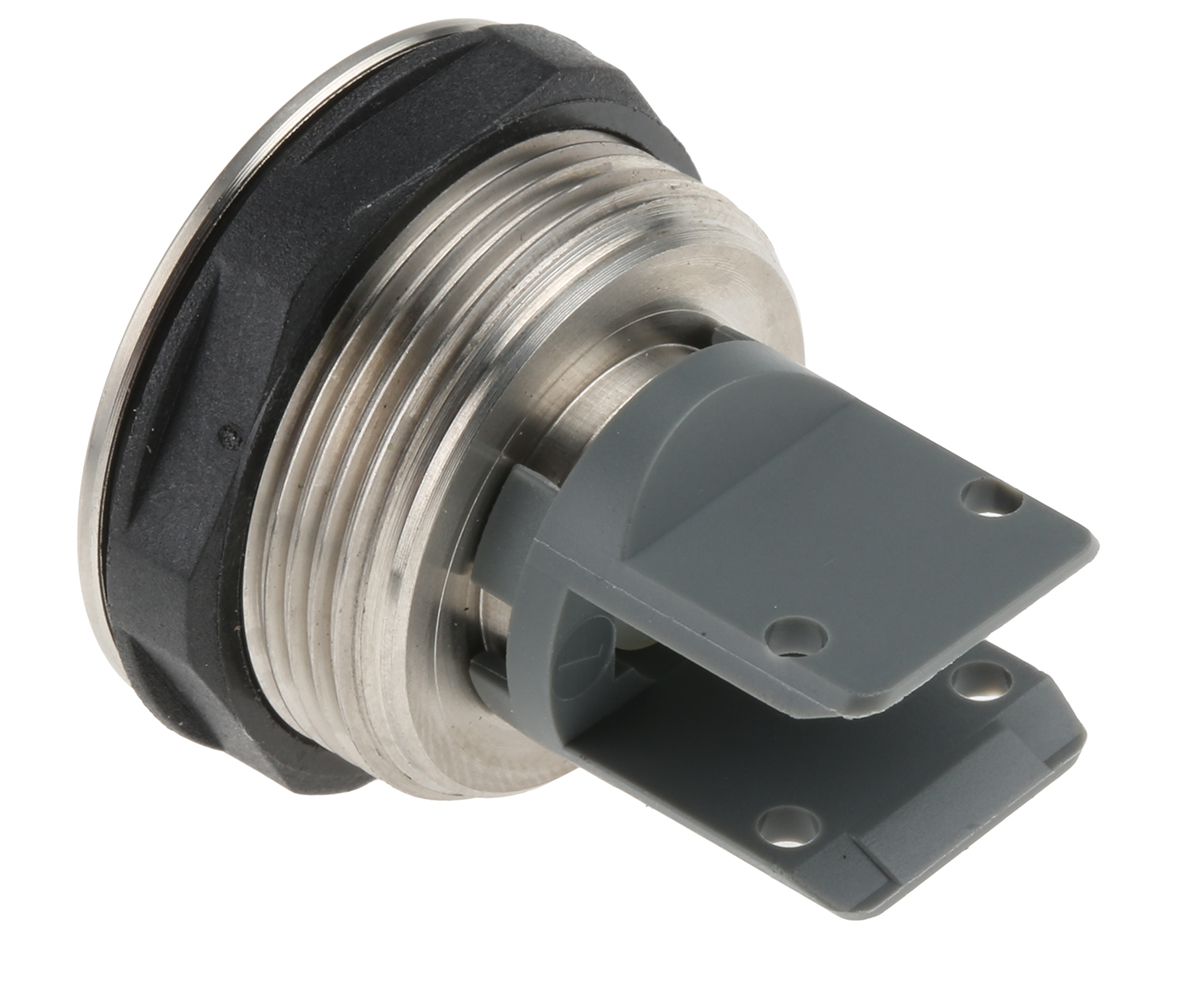

Schurter 1241.6631.1180000 SP-NO/NC Momentary Push Button Switch, IP67, 22mm
Product Information
Actuator Shape:
Round
Actuator Colour:
Silver
Illuminated:
No
Mounting Type:
Through Hole
IP Rating:
IP67
Contact Current Rating:
5 A @ 250 V ac
Panel Cut Out Diameter:
22mm
Voltage Rating:
250V ac
Contact Configuration:
Single Pole Double Throw (SPDT)
Panel Cut Out Size:
22 (Dia.)mm
Terminal Type:
Pin
Switch Operation:
Momentary
Technical Documents
Checking for live stock
More Information
Anti-Vandal M19 & M22 Push Button Switches - MSM Series (Single Pole)
Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102)
Stainless steel housing (anodised aluminium for colour housed versions) and momentary act...
Anti-Vandal M19 & M22 Push Button Switches - MSM Series (Single Pole)
Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102)
Stainless steel housing (anodised aluminium for colour housed versions) and momentary actuator - IP67 protection for front side contact area
Actuator with 4.5N operating force and 1mm travel - protrudes 1.7mm above panel
Quick connect terminals
Long life - up to 1,500,000 mechanical operations
Non illuminated or red LED ring illuminated versions available in 19 or 22mm Ø panel cut outs
Illuminated versions also include a resistor and is fixed at 24V
Approvals
ENEC, UL, CSA
