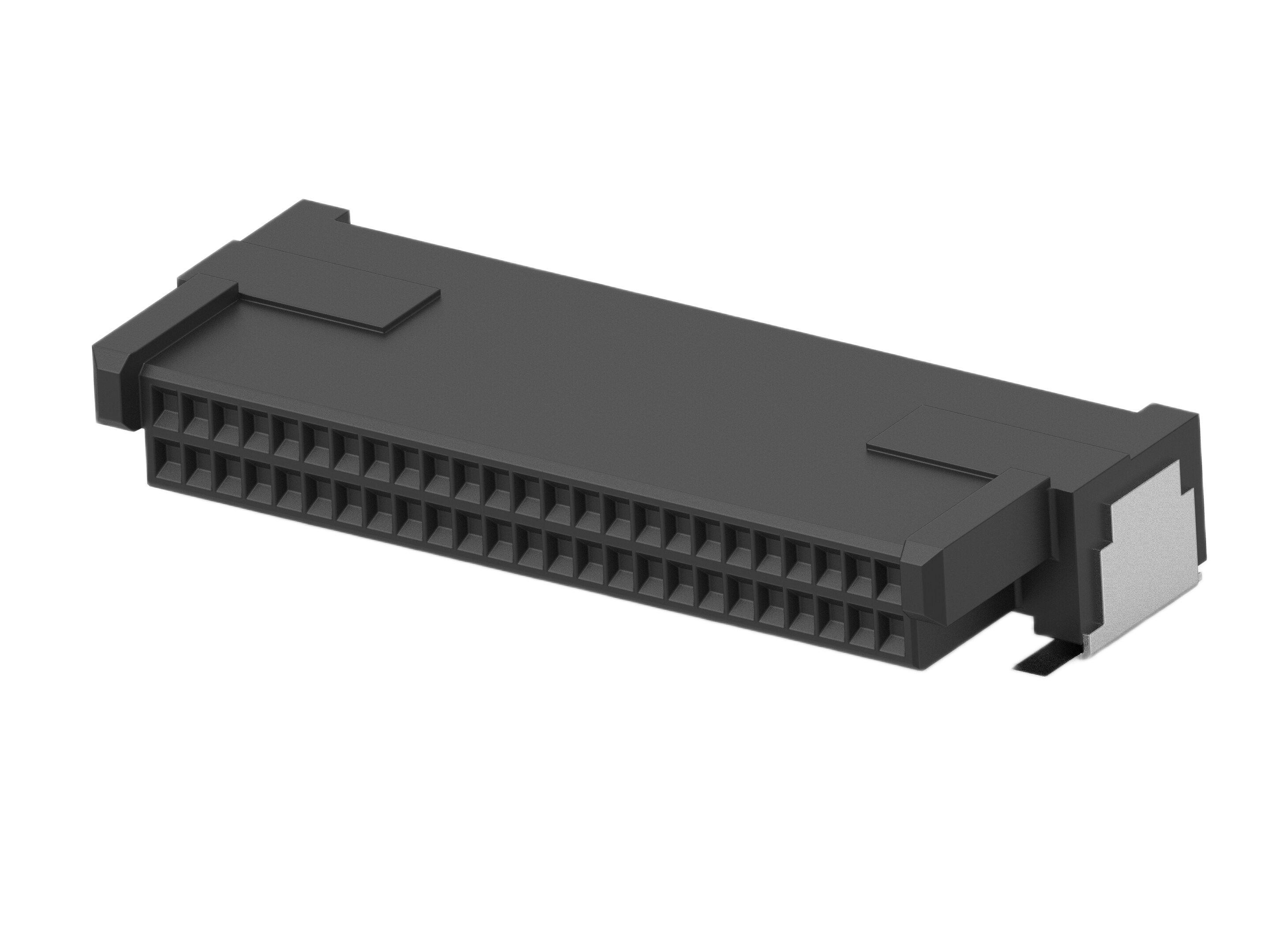

ERNI ERNI MicroCon Series Right Angle Surface Mount PCB Socket, 50-Contact, 2-Row, 0.8mm Pitch, Surface Mount

  • Enrgtech Part No: ET28443540
  • |
  • Manufacturer Part No:

    294257-E

  • |
  • Manufacturer: ERNI
294257-E ERNI ERNI MicroCon Series Right Angle Surface Mount PCB Socket, 50-Contact, 2-Row, 0.8mm Pitch, Surface Mount
294257-E ERNI ERNI MicroCon Series Right Angle Surface Mount PCB Socket, 50-Contact, 2-Row, 0.8mm Pitch, Surface Mount
ERNI

Product Information

Connector System:
Board-to-Board
Number of Contacts:
50
Orientation:
Right Angle
Housing Material:
Liquid Crystal Polymer
Series:
ERNI MicroCon
Sub Type:
PCB Receptacle
Contact Material:
Copper Alloy
Contact Gender:
Female
Row Pitch:
0.8mm
Current:
1.68A
Number of Rows:
2
Standards/Approvals:
DIN EN 60068-1,IEC 60721-3-1,IEC 60664,IEC 60112,IEC 60512,RoHS compliant,UL
Voltage:
500 V
Contact Plating:
Gold
Pitch:
0.8mm
Termination Type:
Surface Mount
Product Type:
PCB Header
Maximum Operating Temperature:
125°C
Minimum Operating Temperature:
-55°C
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is MicroCon Series Right Angle Surface Mount PCB Socket 50-Contact 2-Row 0.8mm Pitch Surface Mount manufactured by ERNI. The manufacturer part number is 294257-E. It allows board-to-board connector system. The product contains 50 contacts. The product has a right angle orientation. The product also features robust liquid crystal polymer housing material. The product erni microcon, is a highly preferred choice for users. Its sub type is pcb receptacle . The product is made from sturdy copper alloy materials. This female contact is widely suited for specific applications. Features a 1.68a current in A. It comes in 2 of rows. It carries a 500 v of voltage. The high-quality gold is used as contact plating material. Moreover, the product is 0.8mm. The product is designed with a surface mount termination. pcb header is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. Whereas, the minimum operating temperature of the product is -55°c. It has a surface type mount .

pdf icon
Datasheet - 294257-E(Technical Reference)
