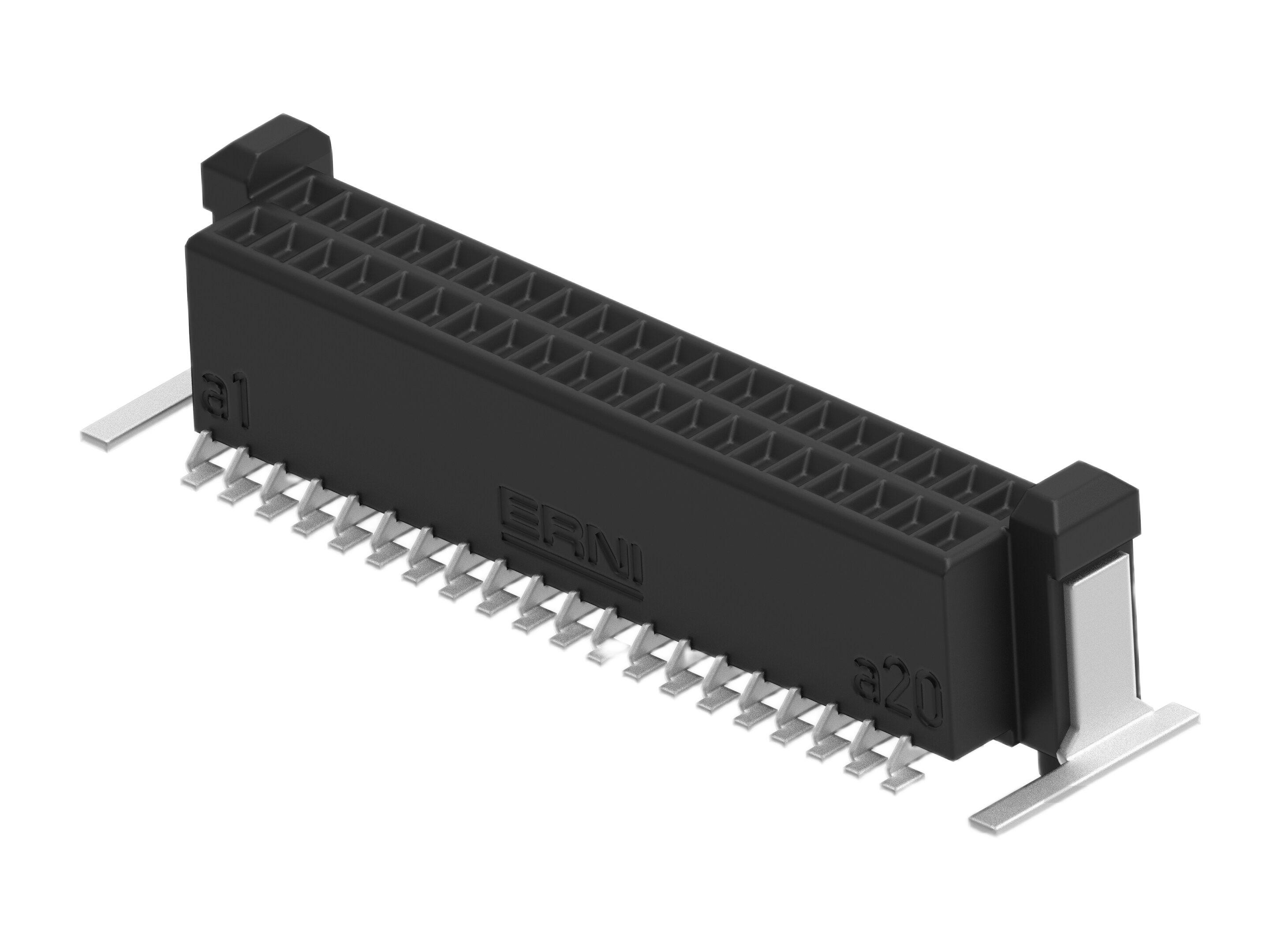

ERNI ERNI MicroCon Series Vertical Surface Mount PCB Socket, 40-Contact, 2-Row, 0.8mm Pitch, Surface Mount Termination

  • Enrgtech Part No: ET28443509
  • |
  • Manufacturer Part No:

    294005-E

  • |
  • Manufacturer: ERNI
294005-E ERNI ERNI MicroCon Series Vertical Surface Mount PCB Socket, 40-Contact, 2-Row, 0.8mm Pitch, Surface Mount Termination
294005-E ERNI ERNI MicroCon Series Vertical Surface Mount PCB Socket, 40-Contact, 2-Row, 0.8mm Pitch, Surface Mount Termination
ERNI

Product Information

Connector System:
Board-to-Board
Number of Contacts:
40
Orientation:
Vertical
Stacking Height:
4mm
Series:
ERNI MicroCon
Contact Material:
Copper Alloy
Minimum Operating Temperature:
-55°C
Contact Gender:
Female
Row Pitch:
0.8mm
Current:
2.82A
Number of Rows:
2
Standards/Approvals:
UL,UL 94V-0, DIN
Voltage:
500 V
Contact Plating:
Gold
Pitch:
0.8mm
Housing Material:
Liquid Crystal Polymer
Product Type:
PCB Header
Termination Type:
Surface Mount
Maximum Operating Temperature:
125°C
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is MicroCon Series Vertical Surface Mount PCB Socket 40-Contact 2-Row 0.8mm Pitch Surface Mount Termination manufactured by ERNI. The manufacturer part number is 294005-E. It allows board-to-board connector system. The product contains 40 contacts. The product has a vertical orientation. It has a standard 4mm stacking height . The product erni microcon, is a highly preferred choice for users. The product is made from sturdy copper alloy materials. Whereas, the minimum operating temperature of the product is -55°c. This female contact is widely suited for specific applications. Features a 2.82a current in A. It comes in 2 of rows. It carries a 500 v of voltage. The high-quality gold is used as contact plating material. Moreover, the product is 0.8mm. The product also features robust liquid crystal polymer housing material. pcb header is a versatile product designed to provide user-defined applications. The product is designed with a surface mount termination. It has a maximum operating temperature of 125°c. It has a surface type mount .

pdf icon
Datasheet - 294005-E(Technical Reference)
