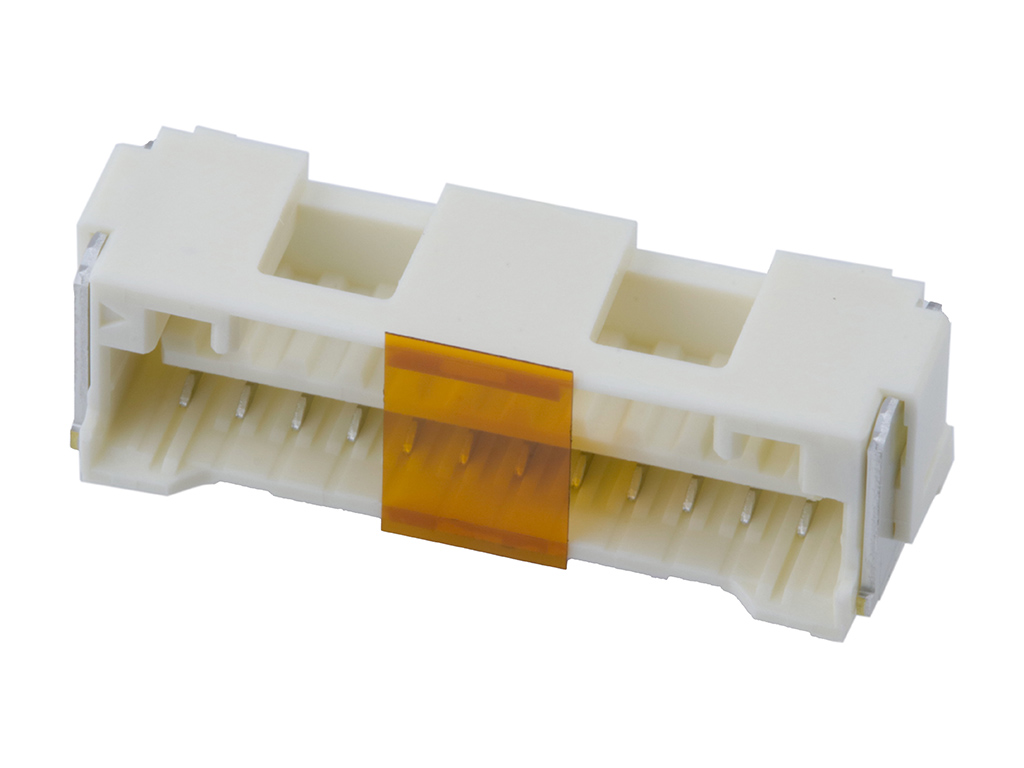

Molex 50258 Series Vertical Board Mount PCB Socket, 12-Contact, 1-Row, 1.5mm Pitch, Surface Mount Termination

502584-1260 Molex 50258 Series Vertical Board Mount PCB Socket, 12-Contact, 1-Row, 1.5mm Pitch, Surface Mount Termination
502584-1260 Molex 50258 Series Vertical Board Mount PCB Socket, 12-Contact, 1-Row, 1.5mm Pitch, Surface Mount Termination
Molex

Product Information

Connector System:
Wire-to-Board
Number of Contacts:
12
Orientation:
Vertical
Series:
50258
Sub Type:
PCB Receptacle
Contact Material:
Copper Alloy
Row Pitch:
1.5mm
Current:
2A
Number of Rows:
1
Standards/Approvals:
IPC 1752A Class D, IPC 1752A Class C, UL E29179, IEC-62474, IEC 61249-2-21
Voltage:
100 V
Contact Plating:
Tin
Pitch:
1.5mm
Termination Type:
Surface Mount
Product Type:
PCB Socket
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-40°C
Mount Type:
Board
RoHs Compliant
Checking for live stock

This is 50258 Series Vertical Board Mount PCB Socket 12-Contact 1-Row 1.5mm Pitch Surface Mount Termination manufactured by Molex. The manufacturer part number is 502584-1260. It allows wire-to-board connector system. The product contains 12 contacts. The product has a vertical orientation. The product 50258, is a highly preferred choice for users. Its sub type is pcb receptacle . The product is made from sturdy copper alloy materials. Features a 2a current in A. It comes in 1 of rows. It carries a 100 v of voltage. The high-quality tin is used as contact plating material. Moreover, the product is 1.5mm. The product is designed with a surface mount termination. pcb socket is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 105°c. Whereas, the minimum operating temperature of the product is -40°c. It has a board type mount .

pdf icon
Datasheet - 502584-1260(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship 502584-1260 Internationally to many countries around the world.
Yes. You can also search 502584-1260 on website for other similar products.
We accept all major payment methods for all products including ET28433293. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET28433293 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET28433293.
You can order Molex brand products with 502584-1260 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 50258 Series Vertical Board Mount PCB Socket, 12-Contact, 1-Row, 1.5mm Pitch, Surface Mount Termination. You can also check on our website or by contacting our customer support team for further order details on Molex 50258 Series Vertical Board Mount PCB Socket, 12-Contact, 1-Row, 1.5mm Pitch, Surface Mount Termination.
