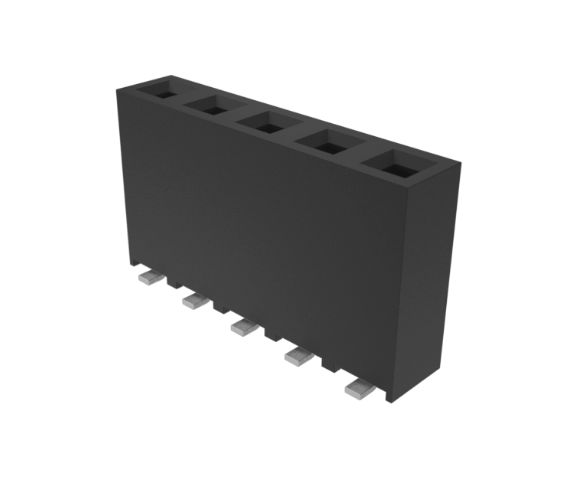

Amphenol Communications Solutions Surface Mount PCB Socket, 5-Contact, 1-Row, 2.54mm Pitch

91601-305ALF Amphenol Communications Solutions Surface Mount PCB Socket, 5-Contact, 1-Row, 2.54mm Pitch
91601-305ALF Amphenol Communications Solutions Surface Mount PCB Socket, 5-Contact, 1-Row, 2.54mm Pitch
Amphenol Communications Solutions

Product Information

Connector System:
Board-to-Board
Number of Contacts:
5
Orientation:
Vertical
Stacking Height:
10.81mm
Minimum Operating Temperature:
-65°C
Series:
91601
Sub Type:
Socket Strip
Contact Material:
Phosphor Bronze
Contact Gender:
Female
Current:
2.5A
Number of Rows:
1
Standards/Approvals:
UL 94 V-0
Voltage:
800 V
Contact Plating:
Gold, Nickel
Pitch:
2.54mm
Housing Material:
Glass Filled Thermoplastic Polyester
Product Type:
PCB Socket
Termination Type:
Solder
Maximum Operating Temperature:
125°C
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is Surface Mount PCB Socket 5-Contact 1-Row 2.54mm Pitch manufactured by Amphenol Communications Solutions. The manufacturer part number is 91601-305ALF. It allows board-to-board connector system. The product contains 5 contacts. The product has a vertical orientation. It has a standard 10.81mm stacking height . Whereas, the minimum operating temperature of the product is -65°c. The product 91601, is a highly preferred choice for users. Its sub type is socket strip . The product is made from sturdy phosphor bronze materials. This female contact is widely suited for specific applications. Features a 2.5a current in A. It comes in 1 of rows. It carries a 800 v of voltage. The high-quality gold, nickel is used as contact plating material. Moreover, the product is 2.54mm. The product also features robust glass filled thermoplastic polyester housing material. pcb socket is a versatile product designed to provide user-defined applications. The product is designed with a solder termination. It has a maximum operating temperature of 125°c. It has a surface type mount .

pdf icon
Schematic - 91601-305ALF(Technical Reference)
pdf icon
Datasheet - 91601-305ALF(Technical Reference)
