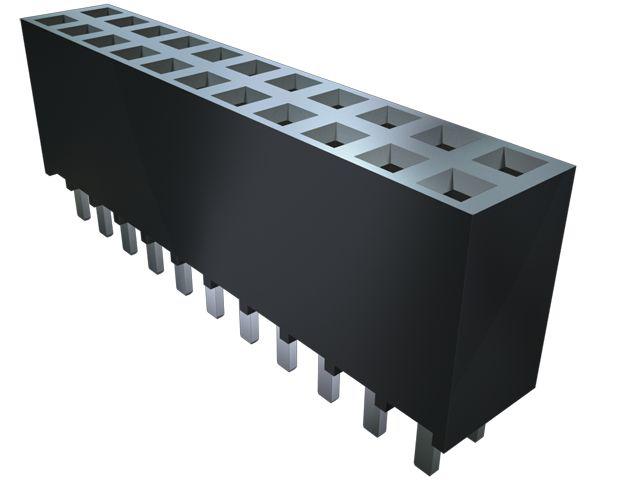

Samtec SSW, SSW-150 2.54mm Pitch 100 Way 2 Row Straight PCB Socket, Through Hole, Solder Termination

SSW-150-06-S-D Samtec SSW, SSW-150 2.54mm Pitch 100 Way 2 Row Straight PCB Socket, Through Hole, Solder Termination
SSW-150-06-S-D Samtec SSW, SSW-150 2.54mm Pitch 100 Way 2 Row Straight PCB Socket, Through Hole, Solder Termination
Samtec

Product Information

Mounting Type:
Through Hole
Series:
SSW
Body Orientation:
Straight
Termination Method:
Solder
Number of Rows:
2
Pitch:
2.54mm
Number of Contacts:
100
Type:
Socket Strip
Series Number:
SSW-150
RoHs Compliant
Checking for live stock

The Samtec SSW‑150‑06‑S‑D is a 100‑contact (2‑row) through‑hole PCB socket strip with a 2.54 mm (0.100″) pitch, designed for straight mounting and solder‑termination on printed circuit boards. Its black LCP insulation, phosphor‑bronze contacts with gold plating, and robust “Tiger Buy” contact design deliver reliable signal integrity and durability for assemblies ranging from prototyping to volume production.

Unique Features and Benefits of Buying the Samtec 100 Way 2 Row Straight PCB Socket

  • 2‑row, 100‑way configuration supports high‑density interconnection on 2.54 mm pitch boards.
  • Through‑hole, straight orientation with solder tails ensures secure board mounting and robust mechanical termination.
  • Supports data rates up to 8 Gbps in compatible configurations.
  • Compatible with both new‑design and retrofit PCB assemblies, offering flexibility for board layout changes.

Engineered for Reliable PCB Interconnects

This socket strip is engineered to maintain signal integrity, alignment precision, and mechanical stability in demanding applications. Its compatibility with conventional 2.54 mm pitch systems ensures ease of integration and mitigates redesign risk.

Versatility in Applications

  • High‑density back‑plane or daughter‑board connectors in industrial control systems.
  • Signal or data‑bus interconnects in test fixtures and instrumentation boards.
  • Retrofit socket replacement in legacy or upgraded PCB assemblies.
  • Embedded systems requiring modular board‑to‑board stacking with reliable signal paths.
  • Electronic manufacturing where robust through‑hole mounting and solder termination provide durability under mechanical stress.
