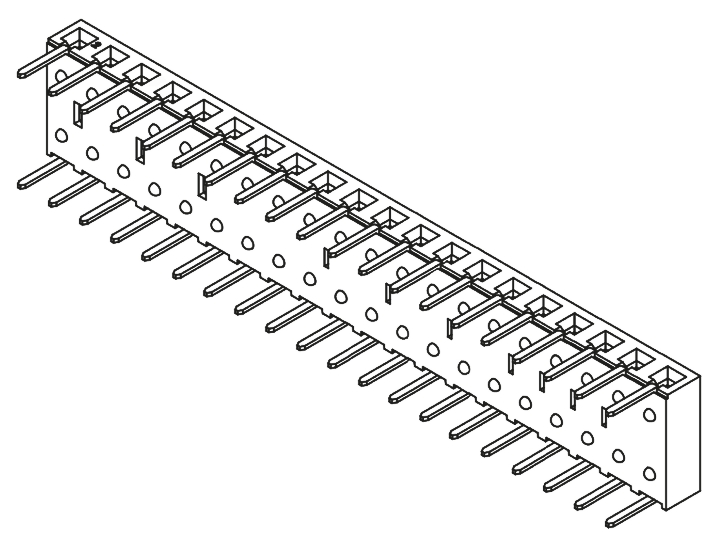

Samtec BCS Series 2.54mm Pitch 20 Way 1 Row Right Angle PCB Socket, Through Hole, Through Hole Termination

BCS-120-L-S-HE Samtec BCS Series 2.54mm Pitch 20 Way 1 Row Right Angle PCB Socket, Through Hole, Through Hole Termination
BCS-120-L-S-HE Samtec BCS Series 2.54mm Pitch 20 Way 1 Row Right Angle PCB Socket, Through Hole, Through Hole Termination
Samtec

Product Information

Connector System:
Board-to-Board
Number of Contacts:
20
Orientation:
Right Angle
Housing Material:
Liquid Crystal Polymer
Series:
BCS
Sub Type:
Board-to-Board
Contact Material:
Bronze
Row Pitch:
0.1in
Current:
5.9A
Number of Rows:
1
Standards/Approvals:
CHINA RoHS, EU REACH, EU RoHS
Voltage:
450 V
Pitch:
2.54mm
Termination Type:
Solder
Contact Plating:
Gold
Product Type:
PCB Socket
Maximum Operating Temperature:
125°C
Minimum Operating Temperature:
-55°C
Mount Type:
Through Hole
RoHs Compliant
Checking for live stock

This is BCS Series 2.54mm Pitch 20 Way 1 Row Right Angle PCB Socket Through Hole Through Hole Termination manufactured by Samtec. The manufacturer part number is BCS-120-L-S-HE. It allows board-to-board connector system. The product contains 20 contacts. The product has a right angle orientation. The product also features robust liquid crystal polymer housing material. The product bcs, is a highly preferred choice for users. Its sub type is board-to-board . The product is made from sturdy bronze materials. Features a 5.9a current in A. It comes in 1 of rows. It carries a 450 v of voltage. Moreover, the product is 2.54mm. The product is designed with a solder termination. The high-quality gold is used as contact plating material. pcb socket is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. Whereas, the minimum operating temperature of the product is -55°c. It has a through hole type mount .

pdf icon
Standard 2.54mm Box Contact Socket - BCS Series - Footprint(Technical Reference)
pdf icon
Standard 2.54mm Box Contact Socket - BCS Series(Technical Reference)
pdf icon
Standard 2.54mm Box Contact Socket - BCS Series - Customer Drawing(Technical Reference)
