Connector System:
Board-to-Board, Signal
Number of Contacts:
2
Orientation:
Right Angle
Housing Material:
Polyester
Series:
C-Grid
Sub Type:
Socket Strip
Contact Material:
Bronze
Contact Gender:
Female
Current:
12A
Number of Rows:
1
Standards/Approvals:
No
Voltage:
350 V
Pitch:
2.54mm
Termination Type:
Solder
Contact Plating:
Tin
Product Type:
PCB Socket
Maximum Operating Temperature:
125°C
Minimum Operating Temperature:
-55°C
Mount Type:
Through Hole
Manufacturer Standard Lead Time:
10 Weeks
Style:
Board to Board
Detailed Description:

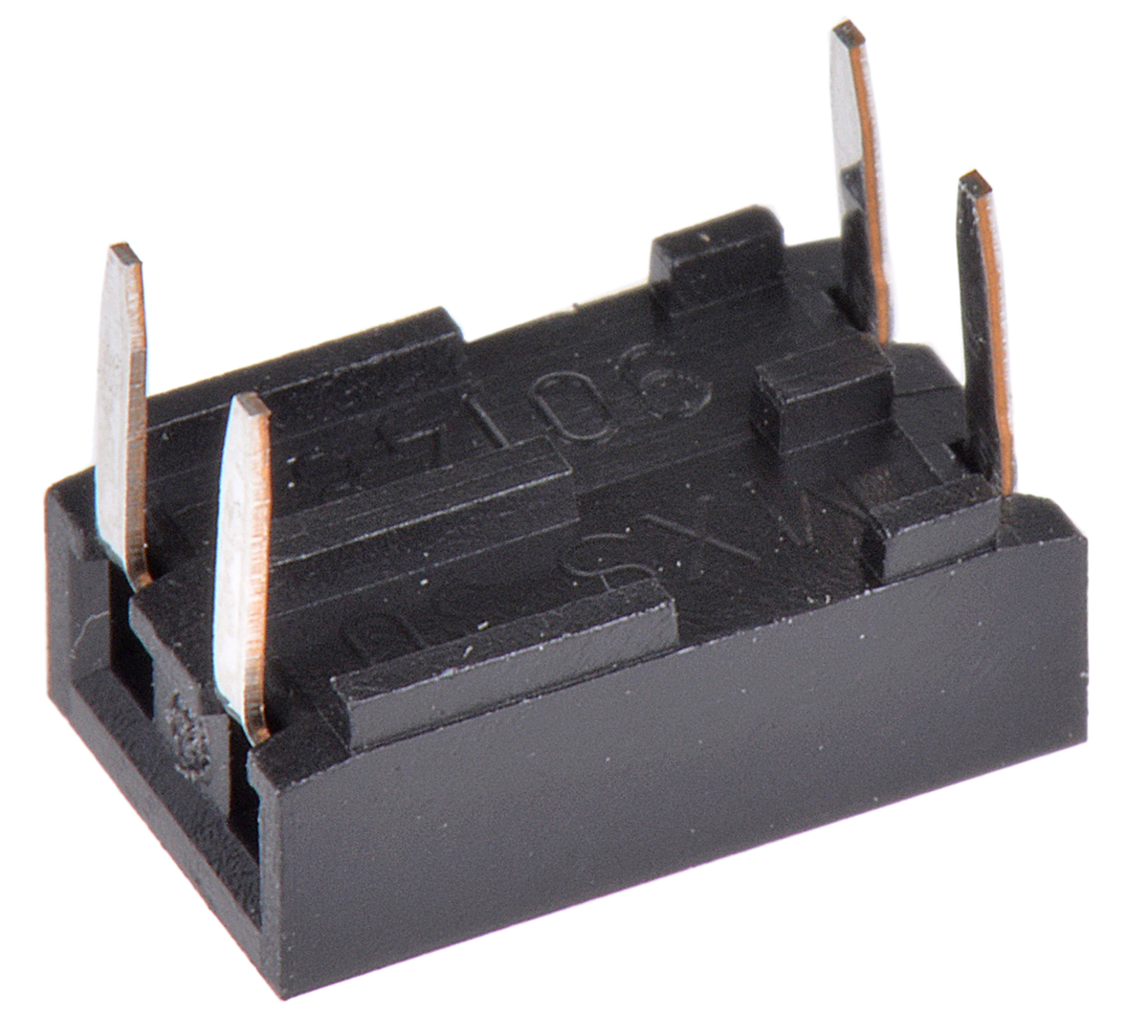

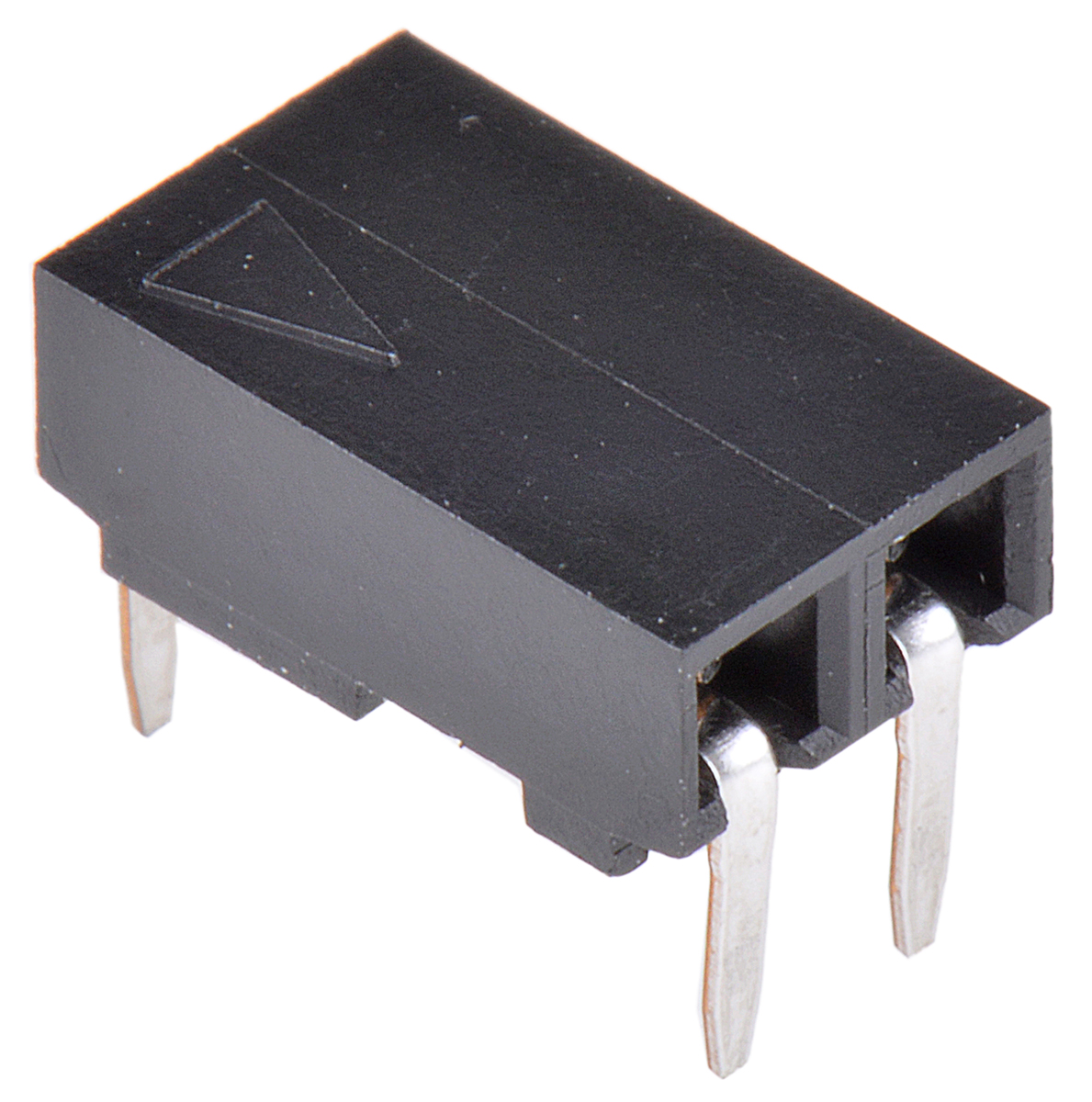

2 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
40.0µin (1.02µm)
Number of Positions:
2
Contact Finish - Mating:
Tin
Insulation Height:
0.130" (3.30mm)
Insulation Color:
Black
Contact Length - Post:
0.114" (2.90mm)
Applications:
Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows:
1
Contact Shape:
Square
Manufacturer:
Molex
Voltage Rating:
350V
Connector Type:
Receptacle
Number of Positions Loaded:
All
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
3A
Pitch - Mating:
0.100" (2.54mm)
Mounting Type:
Through Hole, Right Angle
Series:
C-Grid 90148
Packaging:
Tube
Contact Finish Thickness - Mating:
40.0µin (1.02µm)
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Insulation Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Finish - Post:
Tin
