Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo
manufacturer logo

Manufacturer : HARWIN
Manufacturer Part No : M50-3105045
Enrgtech Part No : ET13934868
Product Range : PolySwitch RXEF Series

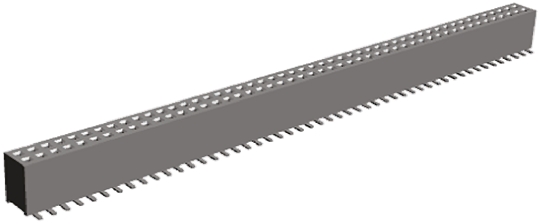

HARWIN 1.27mm Pitch 100 Way 2 Row Straight PCB Socket, Surface Mount, Solder Termination

Shrouded Socket and Pin Headers M50-300/310/311/315/320 Series socket headers mate with M50-350/360/390 Series unshrouded headers typical stock number 681-1184 M52-500/505/510/515 Series socket headers mate with M52-xxxxxxP/S/V/Wxxxx Series unshrouded headers typical stock number 681-3001 M50-430 Series socket headers mate with M50-490 Series pin headers 1.27mm Harwin M50 Series

Product Information

Current Rating : 1A
Mounting Type : Surface Mount
Body Orientation : Straight
Termination Method : Solder
Number of Rows : 2
Pitch : 1.27mm
Number of Contacts : 100
Type : Socket Strip
rohs : RoHS Certificate of Compliance
Contact Material : Phosphor Bronze

Technical Documents

  • 1.27mm pitch dil vertical smt socket assy Drawing (Technical Reference)

Availability:
0
in stock
Check now

Rate:
  • 1-19
    +
    £ 8.630
  • 20-74
    +
    £ 7.176
  • 75-299
    +
    £ 6.035

Qty:
