Current Rating:
12A
Mounting Type:
Surface Mount
Voltage Rating:
1 kV
Body Orientation:
Straight
Termination Method:
Solder
Number of Rows:
2
Pitch:
2.54mm
Number of Contacts:
12
Type:
Socket Strip
Contact Material:
Bronze
Manufacturer Standard Lead Time:
7 Weeks
Style:
Board to Board
Detailed Description:

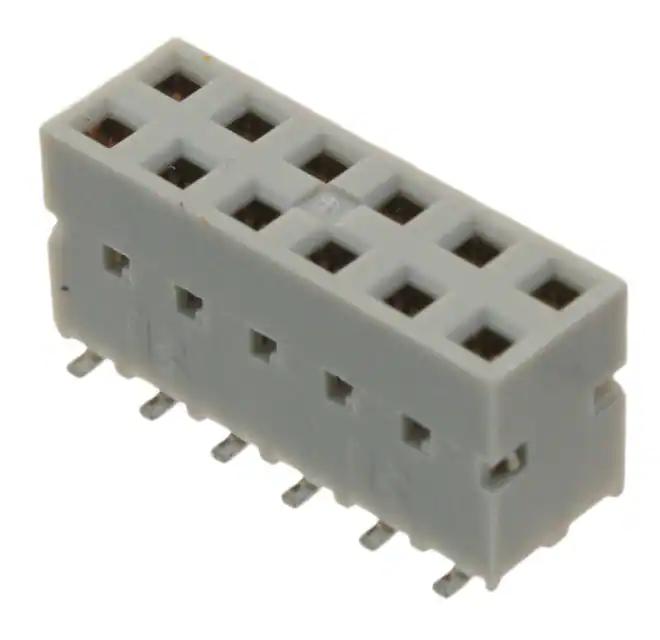

12 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
Contact Finish Thickness - Post:
78.7µin (2.00µm)
Number of Positions:
12
Contact Finish - Mating:
Gold
Insulation Height:
0.275" (6.99mm)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Applications:
Automotive, General Purpose, Industrial, Telecommunications
Number of Rows:
2
Standard Package:
38
Contact Shape:
Square
Manufacturer:
Amphenol FCI
Insulation Color:
Gray
Material Flammability Rating:
UL94 V-0
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Receptacle, Bottom or Top Entry
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Pull
Termination:
Solder
Pitch - Mating:
0.100" (2.54mm)
Mounting Type:
Surface Mount
Series:
Dubox™
Mated Stacking Heights:
10.81mm
Packaging:
Tube
Contact Type:
Female Socket
Contact Finish - Post:
Tin
Other Names:
609-3042
89898-306LF-ND
89898306LF
Insulation Material:
Thermoplastic, Glass Filled
Contact Material:
Phosphor Bronze
