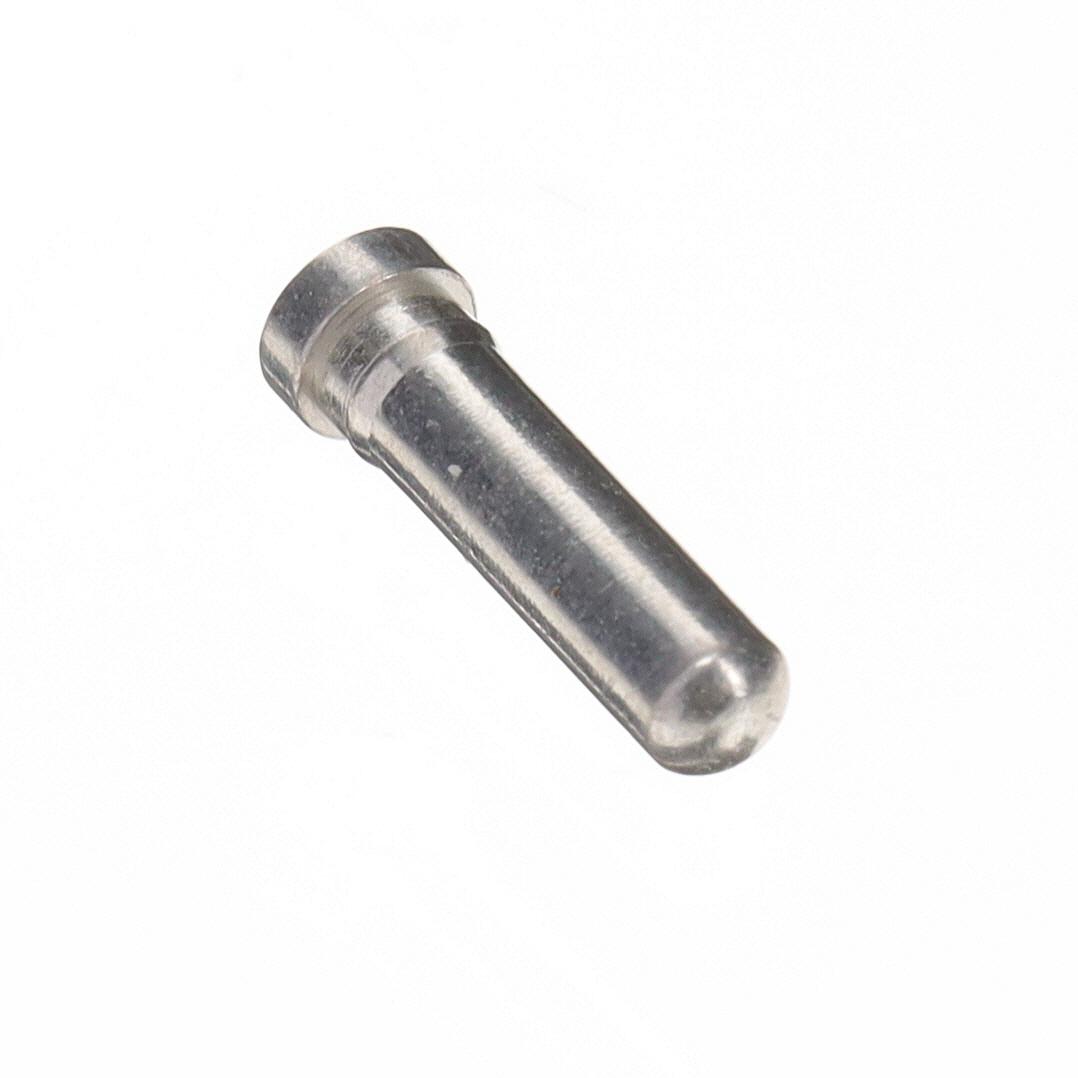

Mill-Max Manufacturing Corp. 8836-0-00-01-00-00-03-0

8836-0-00-01-00-00-03-0 Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

Product Information

Length - Above Flange:
0.282" (7.16mm)
HTSUS:
8536.90.4000
RoHS Status:
RoHS non-compliant
Pin Size - Above Flange:
0.072" (1.83mm) Dia
Material - Insulation:
-
Termination:
Press-Fit
Flange Diameter:
0.093" (2.36mm)
Length - Overall:
0.312" (7.92mm)
Contact Finish Thickness:
200.0µin (5.08µm)
Insulation Color:
-
REACH Status:
REACH Unaffected
Terminal Type:
PC Pin
Package:
Bulk
Mounting Hole Diameter:
0.075" (1.91mm)
Contact Finish:
Tin-Lead
Length - Below Flange:
-
Insulation:
Non-Insulated
Board Thickness:
-
standardLeadTime:
5 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Series:
8836
Pin Size - Below Flange:
-
Terminal Style:
Wire
ECCN:
EAR99
Base Product Number:
8836-0
Contact Material:
Brass Alloy
Checking for live stock

This is manufactured by Mill-Max Manufacturing Corp.. The manufacturer part number is 8836-0-00-01-00-00-03-0. It has 0.282" (7.16mm) length above flange. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs non-compliant. While above the flange, the pin has 0.072" (1.83mm) dia size. The product features press-fit termination style. The flange diameter is 0.093" (2.36mm). The product has an integral 0.312" (7.92mm) overall length. It has 200.0µin (5.08µm) of contact finishing thickness. In addition, it is reach unaffected. The terminal is a pc pin type. It is shipped in bulk package . The given diameter of mounting hole is 0.075" (1.91mm). Furthermore, the product is galvanized with excellent tin-lead contact finishing. Insulation Option: non-insulated. It has a long 5 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product 8836, is a highly preferred choice for users. Features wire terminals. The product is designated with the ear99 code number. Moreover, it corresponds to 8836-0, a base product number of the product. The product is made from sturdy brass alloy materials.
