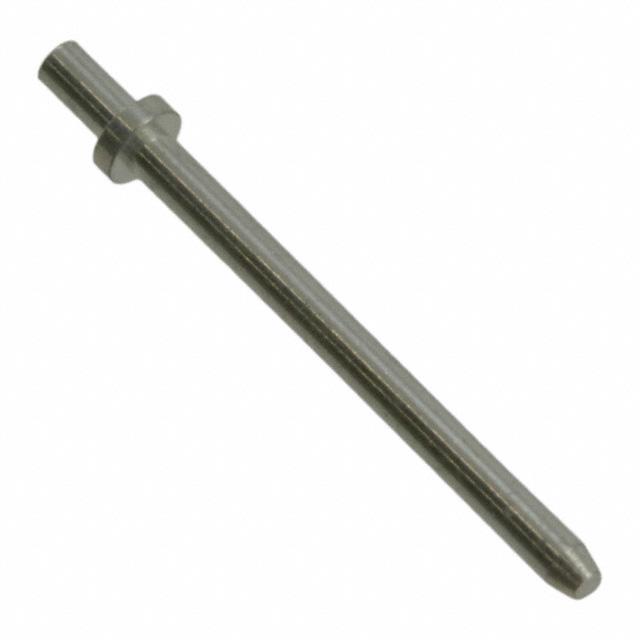

Harwin Inc. H2170-01

H2170-01 Harwin Inc.
Harwin Inc.

Product Information

Length - Above Flange:
0.500" (12.70mm)
RoHS Status:
ROHS3 Compliant
Pin Size - Above Flange:
0.041" (1.04mm) Dia
Material - Insulation:
Flange Diameter:
0.070" (1.77mm)
Length - Overall:
0.602" (15.29mm)
Contact Finish Thickness:
Insulation Color:
REACH Status:
REACH Unaffected
Terminal Type:
PC Pin
Mounting Hole Diameter:
0.041" ~ 0.045" (1.04mm ~ 1.14mm)
Contact Finish:
Length - Below Flange:
0.082" (2.08mm)
Board Thickness:
0.063" (1.60mm)
10 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Pin Size - Below Flange:
Terminal Style:
Single End
Base Product Number:
Contact Material:
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is H2170-01. It has 0.500" (12.70mm) length above flange. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. While above the flange, the pin has 0.041" (1.04mm) dia size. The product features swage termination style. The flange diameter is 0.070" (1.77mm). The product has an integral 0.602" (15.29mm) overall length. In addition, it is reach unaffected. The terminal is a pc pin type. It is shipped in bulk package . The given diameter of mounting hole is 0.041" ~ 0.045" (1.04mm ~ 1.14mm). Furthermore, the product is galvanized with excellent tin contact finishing. The product has a 0.082" (2.08mm) length below flange. Insulation Option: non-insulated. Moreover, 0.063" (1.60mm) is the given board thickness. It has a long 10 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. Features single end terminals. The product is designated with the ear99 code number. Moreover, it corresponds to h2170, a base product number of the product. The product is made from sturdy brass materials.
