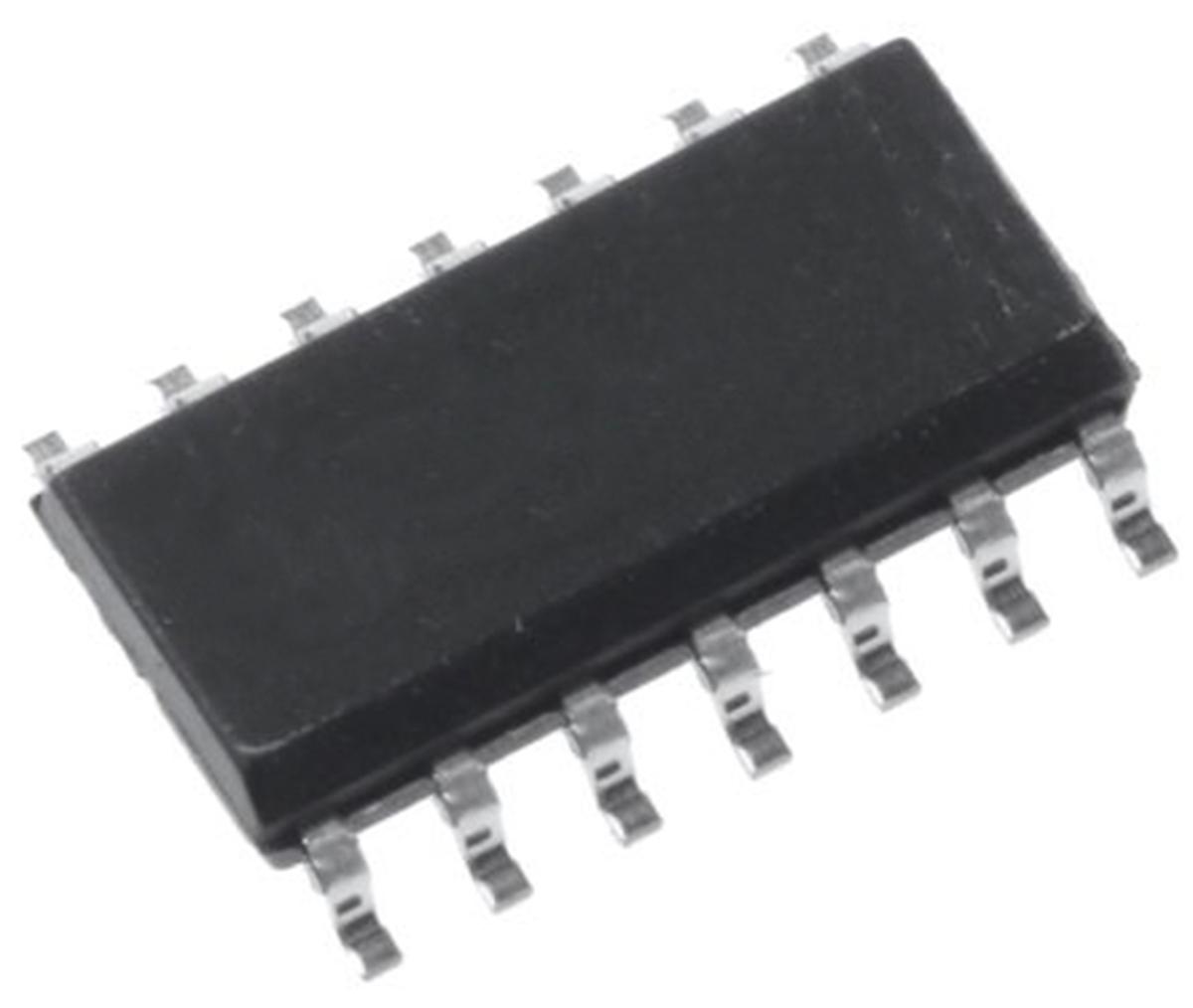

Renesas Electronics ISL55004IBZ, Op Amp, 70MHz, 5 → 28 V, 14-Pin SOIC

ISL55004IBZ Renesas Electronics , Op Amp, 70MHz, 5 → 28 V, 14-Pin SOIC
Renesas Electronics

Product Information

Typical Dual Supply Voltage:
±12 V, ±3 V, ±5 V, ±9 V
Typical Input Voltage Noise Density:
12nV/√Hz
Typical Gain Bandwidth Product:
70MHz
Dimensions:
8.75 x 4 x 1.5mm
Mounting Type:
Surface Mount
Typical Slew Rate:
300V/µs
Power Supply Type:
Dual, Single
Number of Channels per Chip:
4
Rail to Rail:
No
Height:
1.5mm
Typical Single Supply Voltage:
5 → 28 V
Width:
4mm
Length:
8.75mm
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Typical Voltage Gain:
86.4 dB
Maximum Operating Temperature:
+85 °C
Pin Count:
14
RoHs Compliant
Checking for live stock

This is Op Amp 70MHz 5 → 28 V 14-Pin SOIC manufactured by Renesas Electronics. The manufacturer part number is ISL55004IBZ. While ±12 v, ±3 v, ±5 v, ±9 v is the typical dual supply voltage. Featuring a 12nv/√hz of typical input voltage noise density. Features 70mhz typical gain bandwidth. The given dimensions of the product include 8.75 x 4 x 1.5mm. The product is available in surface mount configuration. Furthermore, it has a typical 300v/µs of slew rate. It is a type of dual, single power supply. It comprises 4 channels per chip. Rail to rail options include no. In addition, the height is 1.5mm. It has a typical single supply voltage of 5 → 28 v. Furthermore, the product is 4mm wide. Its accurate length is 8.75mm. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, its typical voltage gain includes 86.4 db. It has a maximum operating temperature of +85 °c. It contains 14 pins.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
ISL55004, High Supply Voltage 200MHz Unity-Gain Stable Operational Amplifier(Technical Reference)
