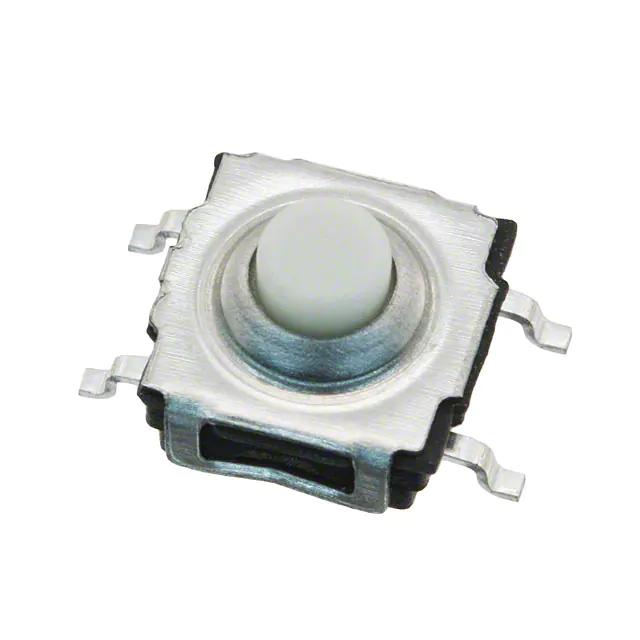

E-Switch TL6120AF300QG

TL6120AF300QG E-Switch
TL6120AF300QG
E-Switch

Product Information

Manufacturer Standard Lead Time:
18 Weeks
Detailed Description:
Tactile Switch SPST-NO Top Actuated Surface Mount
Operating Force:
300gf
Termination Style:
Gull Wing
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
500,000 Cycles
Base Part Number:
TL6120
Actuator Height off PCB, Vertical:
4.70mm
Customer Reference:
Outline:
7.40mm x 7.40mm
Switch Function:
Off-Mom
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
Mounting Type:
Surface Mount
Series:
TL6120
Packaging:
Cut Tape (CT)
Switch Travel:
0.50mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Manufacturer:
E-Switch
Actuator Material:
Polyamide (PA), Nylon
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL6120AF300QG. It has typical 18 weeks of manufacturer standard lead time. It features tactile switch spst-no top actuated surface mount. It has a 300gf of operating force. Moreover, it has gull wing terminal style. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 500,000 cycles. Base Part Number: tl6120. Features 4.70mm actuator vertical height off PCB. The given outline of the product is 7.40mm x 7.40mm. It is designed as a off-mom switching function. It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. The product is available in surface mount configuration. The product tl6120, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. The product has a switching travel of 0.50mm. The product carries standard actuator. Is this product illuminated? non-illuminated. The e-switch's product offers user-desired applications. The actuator is designed from sturdy polyamide (pa), nylon material.

pdf icon
E-Switch RoHS 3 Cert(Environmental Information)
pdf icon
TL6100 Series Datasheet(Datasheets)
pdf icon
TL6120 Series Datasheet(Datasheets)
pdf icon
TL6120AF300QG Drawing(Datasheets)
