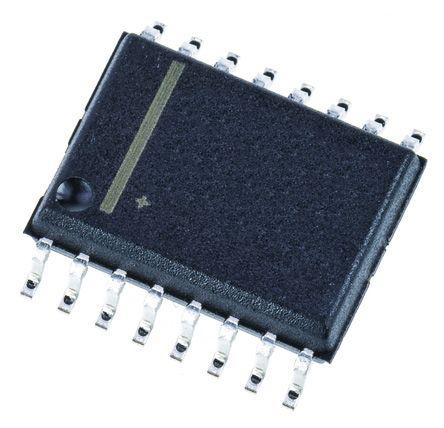

Analog Devices AD842JRZ-16, Low Noise, Op Amp, 80MHz, 16-Pin SOIC

AD842JRZ-16 Analog Devices , Low Noise, Op Amp, 80MHz, 16-Pin SOIC
Analog Devices

Product Information

Dimensions:
10.5 x 7.6 x 2.35mm
Typical Slew Rate:
375V/µs
Rail to Rail:
No
Width:
7.6mm
Power Supply Type:
Dual
Number of Channels per Chip:
1
Maximum Operating Frequency:
1 kHz
Package Type:
SOIC
Typical Voltage Gain:
99 dB
Maximum Operating Temperature:
+70 °C
Typical Gain Bandwidth Product:
80MHz
Length:
10.5mm
Pin Count:
16
Offset Voltage:
3mV
Typical Dual Supply Voltage:
±15V
Typical Input Voltage Noise Density:
9nV/√Hz
Mounting Type:
Surface Mount
Output Current:
100 mA
Input Voltage Range:
±5 → ±18 V
Height:
2.35mm
Minimum Operating Temperature:
0 °C
Amplifier Type:
Low Noise
Maximum Input Voltage:
±18 V
Minimum Input Voltage:
±5 V
RoHs Compliant
Checking for live stock

This is Low Noise Op Amp 80MHz 16-Pin SOIC manufactured by Analog Devices. The manufacturer part number is AD842JRZ-16. The given dimensions of the product include 10.5 x 7.6 x 2.35mm. Furthermore, it has a typical 375v/µs of slew rate. Rail to rail options include no. Furthermore, the product is 7.6mm wide. It is a type of dual power supply. It comprises 1 channels per chip. It carries 1 khz of maximum operating frequency. The package is a sort of soic. Furthermore, its typical voltage gain includes 99 db. It has a maximum operating temperature of +70 °c. Features 80mhz typical gain bandwidth. Its accurate length is 10.5mm. It contains 16 pins. Its offset voltage is approximately 3mv . While ±15v is the typical dual supply voltage. Featuring a 9nv/√hz of typical input voltage noise density. The product is available in surface mount configuration. It carries 100 ma output current. It has ±5 → ±18 v of input voltage range. In addition, the height is 2.35mm. Whereas, the minimum operating temperature of the product is 0 °c. It is a sort of a low noise amplifier. ±18 v is the maximum voltage of the bespoke product. The product has ±5 v of minimum input voltage.
