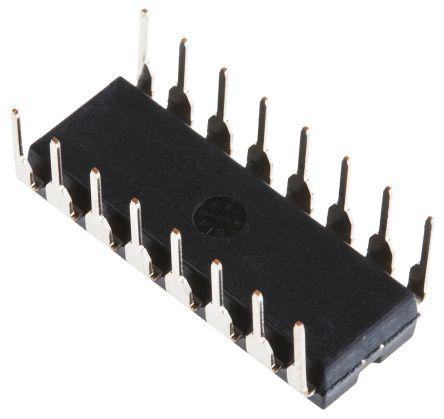

Analog Devices ADG442BNZ, Analogue Switch Quad SPST, 12 V, 16-Pin PDIP

ADG442BNZ Analog Devices , Analogue Switch Quad SPST, 12 V, 16-Pin PDIP
ADG442BNZ
Analog Devices

Product Information

Output Signal Type:
Single Ended
Dimensions:
20.07 x 6.35 x 3.3mm
Mounting Type:
Through Hole
Input Signal Type:
Single Ended
Power Supply Type:
Dual, Single
Maximum Power Dissipation:
470 mW
Number of Channels per Chip:
4
Typical Dual Supply Voltage:
±15V
Height:
3.3mm
Typical Single Supply Voltage:
12 V
Width:
6.35mm
Length:
20.07mm
Package Type:
PDIP
Minimum Operating Temperature:
-40 °C
Configuration:
Quad SPST
Maximum Operating Temperature:
+85 °C
Pin Count:
16
Switch Type:
Analogue
RoHs Compliant
Checking for live stock

This is Analogue Switch Quad SPST 12 V 16-Pin PDIP manufactured by Analog Devices. The manufacturer part number is ADG442BNZ. The output signal is a kind of single ended. The given dimensions of the product include 20.07 x 6.35 x 3.3mm. The product is available in through hole configuration. The input signal is a kind of single ended signal. It is a type of dual, single power supply. Provides up to 470 mw maximum power dissipation. It comprises 4 channels per chip. While ±15v is the typical dual supply voltage. In addition, the height is 3.3mm. It has a typical single supply voltage of 12 v. Furthermore, the product is 6.35mm wide. Its accurate length is 20.07mm. The package is a sort of pdip. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in quad spst configuration. It has a maximum operating temperature of +85 °c. It contains 16 pins. Quality product with a analogue switch type.
