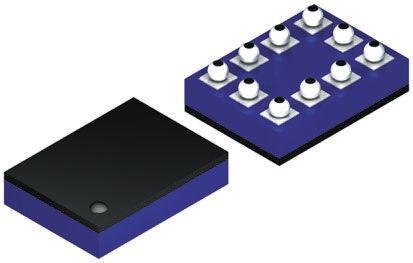

Analog Devices ADG787BCBZ-500RL7, Analogue Switch Dual SPDT, 1.8 → 5.5 V, 10-Pin WLCSP

ADG787BCBZ-500RL7 Analog Devices , Analogue Switch Dual SPDT, 1.8 → 5.5 V, 10-Pin WLCSP
Analog Devices

Product Information

Number of Outputs per Element:
4
Output Signal Type:
Single Ended
Dimensions:
2.06 x 1.56 x 0.37mm
Mounting Type:
Surface Mount
Input Signal Type:
Single Ended
Power Supply Type:
Single
Maximum Power Dissipation:
0.1 μW
Number of Channels per Chip:
2
Multiplexer Architecture:
2:1
Height:
0.37mm
Typical Single Supply Voltage:
1.8 → 5.5 V
Width:
1.56mm
Length:
2.06mm
Package Type:
WLCSP
Minimum Operating Temperature:
-25 °C
Number of Inputs per Element:
2
Configuration:
Dual SPDT
Maximum Operating Temperature:
+85 °C
Pin Count:
10
Switch Type:
Analogue
RoHs Compliant
Checking for live stock

This is Analogue Switch Dual SPDT 1.8 → 5.5 V 10-Pin WLCSP manufactured by Analog Devices. The manufacturer part number is ADG787BCBZ-500RL7. It includes 4 outputs per element . The output signal is a kind of single ended. The given dimensions of the product include 2.06 x 1.56 x 0.37mm. The product is available in surface mount configuration. The input signal is a kind of single ended signal. It is a type of single power supply. Provides up to 0.1 μw maximum power dissipation. It comprises 2 channels per chip. However, it has 2:1 multiplexer architecture . In addition, the height is 0.37mm. It has a typical single supply voltage of 1.8 → 5.5 v. Furthermore, the product is 1.56mm wide. Its accurate length is 2.06mm. The package is a sort of wlcsp. Whereas, the minimum operating temperature of the product is -25 °c. Moreover, the product has 2 input(s) per element . The product is available in dual spdt configuration. It has a maximum operating temperature of +85 °c. It contains 10 pins. Quality product with a analogue switch type.

pdf icon
ADG787 CMOS Low Power Dual 2:1 Mux/Demux USB 1.1 Switch(Technical Reference)
