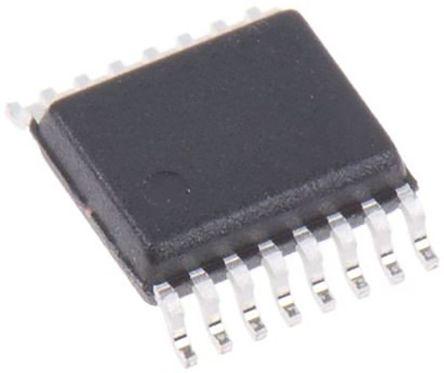

Analog Devices ADG659YRQZ, Multiplexer Dual 4 x 2, 5 V, 16-Pin QSOP

ADG659YRQZ Analog Devices , Multiplexer Dual 4 x 2, 5 V, 16-Pin QSOP
ADG659YRQZ
Analog Devices

Product Information

Dimensions:
0.193 x 0.154 x 0.065in
Width:
0.154in
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Package Type:
QSOP
Configuration:
Dual 4 x 2
Maximum Operating Temperature:
+125 °C
Number of Outputs per Element:
2
Multiplexer Architecture:
4:2
Output Signal Type:
Single Ended
Input Signal Type:
Differential
Typical Single Supply Voltage:
5 V
Number of Inputs per Element:
4
Pin Count:
16
Typical Dual Supply Voltage:
±5V
Mounting Type:
Surface Mount
Maximum Power Dissipation:
0.1 μW
Length:
4.9mm
Height:
1.65mm
Minimum Operating Temperature:
-40 °C
Switch Type:
Analogue Multiplexer
RoHs Compliant
Checking for live stock

This is Multiplexer Dual 4 x 2 5 V 16-Pin QSOP manufactured by Analog Devices. The manufacturer part number is ADG659YRQZ. The given dimensions of the product include 0.193 x 0.154 x 0.065in. Furthermore, the product is 0.154in wide. It is a type of dual, single power supply. It comprises 2 channels per chip. The package is a sort of qsop. The product is available in dual 4 x 2 configuration. It has a maximum operating temperature of +125 °c. It includes 2 outputs per element . However, it has 4:2 multiplexer architecture . The output signal is a kind of single ended. The input signal is a kind of differential signal. It has a typical single supply voltage of 5 v. Moreover, the product has 4 input(s) per element . It contains 16 pins. While ±5v is the typical dual supply voltage. The product is available in surface mount configuration. Provides up to 0.1 μw maximum power dissipation. Its accurate length is 4.9mm. In addition, the height is 1.65mm. Whereas, the minimum operating temperature of the product is -40 °c. Quality product with a analogue multiplexer switch type.

pdf icon
ADG658/ADG659 +3 V/+5 V/±5 V CMOS 4- and 8-Channel Analog Multiplexers Data Sheet(Technical Reference)
