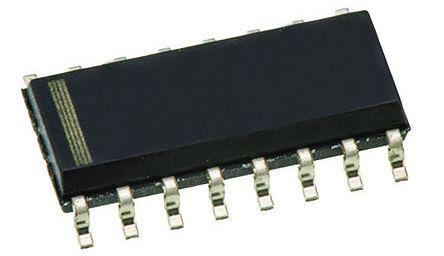

This is ADG512BRZ Analogue Switch Quad SPST 5 V 16-Pin SOIC manufactured by Analog Devices. The manufacturer part number is ADG512BRZ-REEL7. The given dimensions of the product include 10 x 4 x 1.75mm. Furthermore, the product is 4mm wide. It is a type of dual, single power supply. It comprises 4 channels per chip. The package is a sort of soic. The product is available in quad spst configuration. It has a maximum operating temperature of +85 °c. It includes 4 outputs per element . However, it has 4:4 multiplexer architecture . The output signal is a kind of differential. The input signal is a kind of single ended signal. Its accurate length is 10mm. Moreover, the product has 4 input(s) per element . It contains 16 pins. While ±5v is the typical dual supply voltage. The product is available in surface mount configuration. Provides up to 600 mw maximum power dissipation. It has a typical single supply voltage of 5 v. In addition, the height is 1.75mm. Whereas, the minimum operating temperature of the product is -40 °c. Quality product with a analogue switch type.
