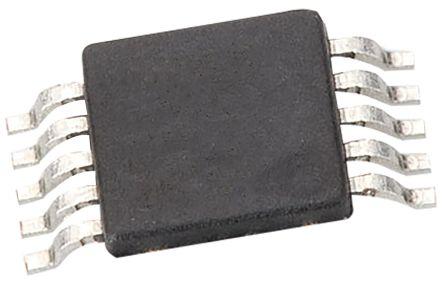

Analog Devices ADG5423BRMZ, Analogue Switch Dual SPST, 9 → 40 V, 10-Pin MSOP

ADG5423BRMZ Analog Devices , Analogue Switch Dual SPST, 9 → 40 V, 10-Pin MSOP
Analog Devices

Product Information

Number of Outputs per Element:
2
Output Signal Type:
Differential
Dimensions:
3.1 x 3.1 x 0.95mm
Mounting Type:
Surface Mount
Input Signal Type:
Single Ended
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Multiplexer Architecture:
2:2
Height:
0.95mm
Typical Single Supply Voltage:
9 → 40 V
Width:
3.1mm
Length:
3.1mm
Package Type:
MSOP
Typical Dual Supply Voltage:
±9 → ±22V
Minimum Operating Temperature:
-40 °C
Number of Inputs per Element:
2
Configuration:
Dual SPST
Maximum Operating Temperature:
+125 °C
Pin Count:
10
Switch Type:
Analogue
RoHs Compliant
Checking for live stock

This is Analogue Switch Dual SPST 9 → 40 V 10-Pin MSOP manufactured by Analog Devices. The manufacturer part number is ADG5423BRMZ. It includes 2 outputs per element . The output signal is a kind of differential. The given dimensions of the product include 3.1 x 3.1 x 0.95mm. The product is available in surface mount configuration. The input signal is a kind of single ended signal. It is a type of dual, single power supply. It comprises 2 channels per chip. However, it has 2:2 multiplexer architecture . In addition, the height is 0.95mm. It has a typical single supply voltage of 9 → 40 v. Furthermore, the product is 3.1mm wide. Its accurate length is 3.1mm. The package is a sort of msop. While ±9 → ±22v is the typical dual supply voltage. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product has 2 input(s) per element . The product is available in dual spst configuration. It has a maximum operating temperature of +125 °c. It contains 10 pins. Quality product with a analogue switch type.
