Dimensions:
56 x 12 x 112mm
Capacitance Measurement Resolution:
0.01nF
DC Current Measurement Resolution:
0.1µA dc
Absolute Maximum DC Voltage Measurement:
600V dc
Width:
12mm
AC Current Measurement Resolution:
0.1µA ac
Absolute Maximum AC Voltage Measurement:
600V ac
Model Number p:

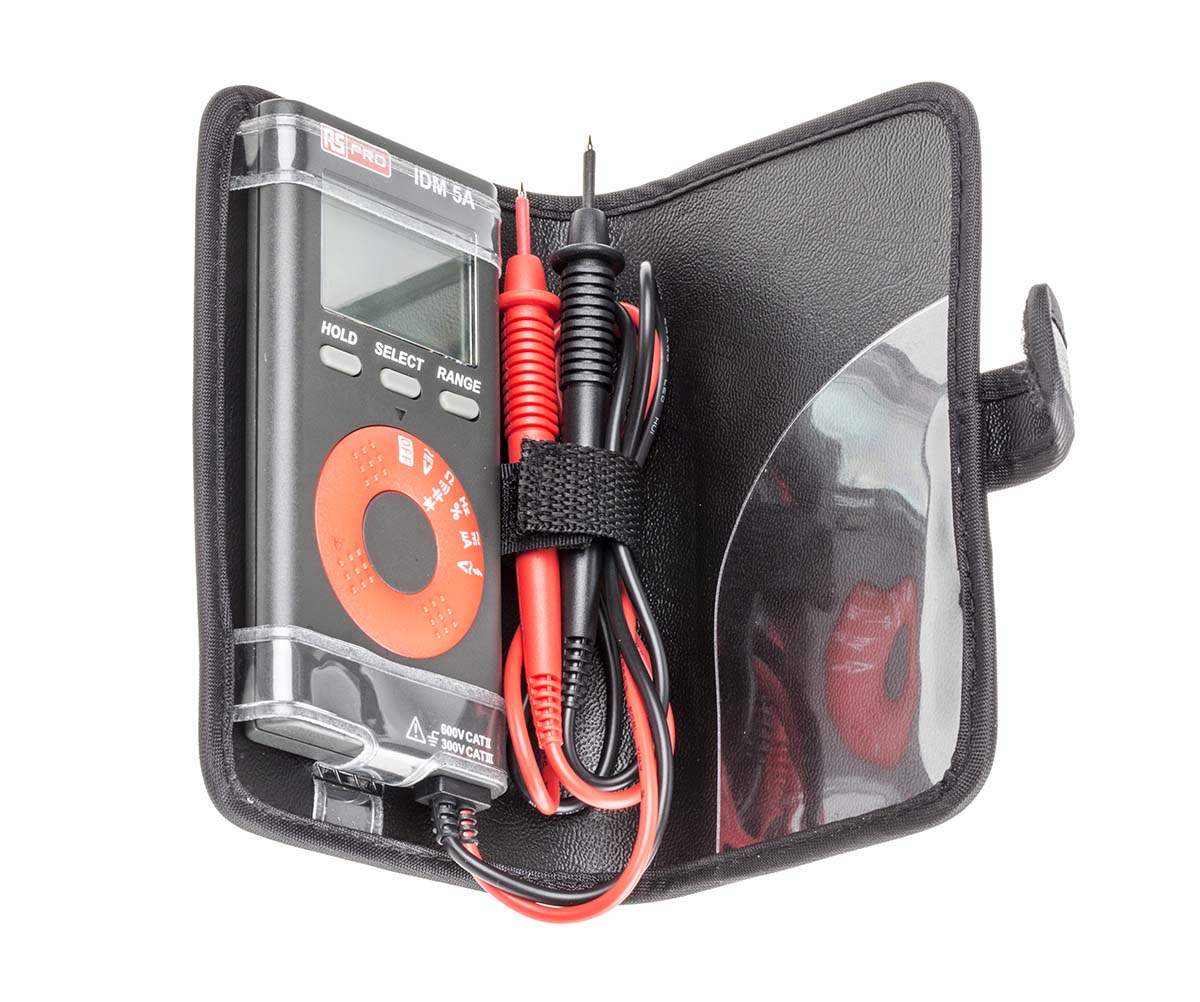

IDM5A
Resistance Measurement Resolution:
100mΩ
Best AC Voltage Accuracy:
±0.9% + 5 Digits
Absolute Maximum AC Current Measurement:
4mA ac
Maximum Frequency:
40kHz
Absolute Maximum Capacitance Measurement:
400µF
Battery Type:
LR44 1.5 V
Absolute Maximum Resistance Measurement:
40MΩ
Maximum Operating Temperature:
+50°C
Best Capacitance Measurement Accuracy:
±2.9% + 5 Digits
Minimum Operating Temperature:
0°C
Safety Category Level:
CAT II, CAT III
Length:
56mm
Calibrated:
RSCAL
Absolute Maximum DC Current Measurement:
4mA dc
Display Type:
Digital
Best DC Current Accuracy:
±0.9% + 5 Digits
Weight:
100g
AC Voltage Measurement Resolution:
0.1mV ac
Best AC Current Accuracy:
±0.9% + 5 Digits
Safety Category Voltage:
300 V, 600V
Multimeter Type:
Handheld
Height:
112mm
Best Resistance Measurement Accuracy:
±0.9% + 2 Digits
Best DC Voltage Accuracy:
±0.6% + 2 Digits
DC Voltage Measurement Resolution:
0.1mV dc
Functions Measured:
AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Diode, Frequency, Resistance, RMS, Temperature
