SKF Cable for use with BG 75 Brushless DC Motor

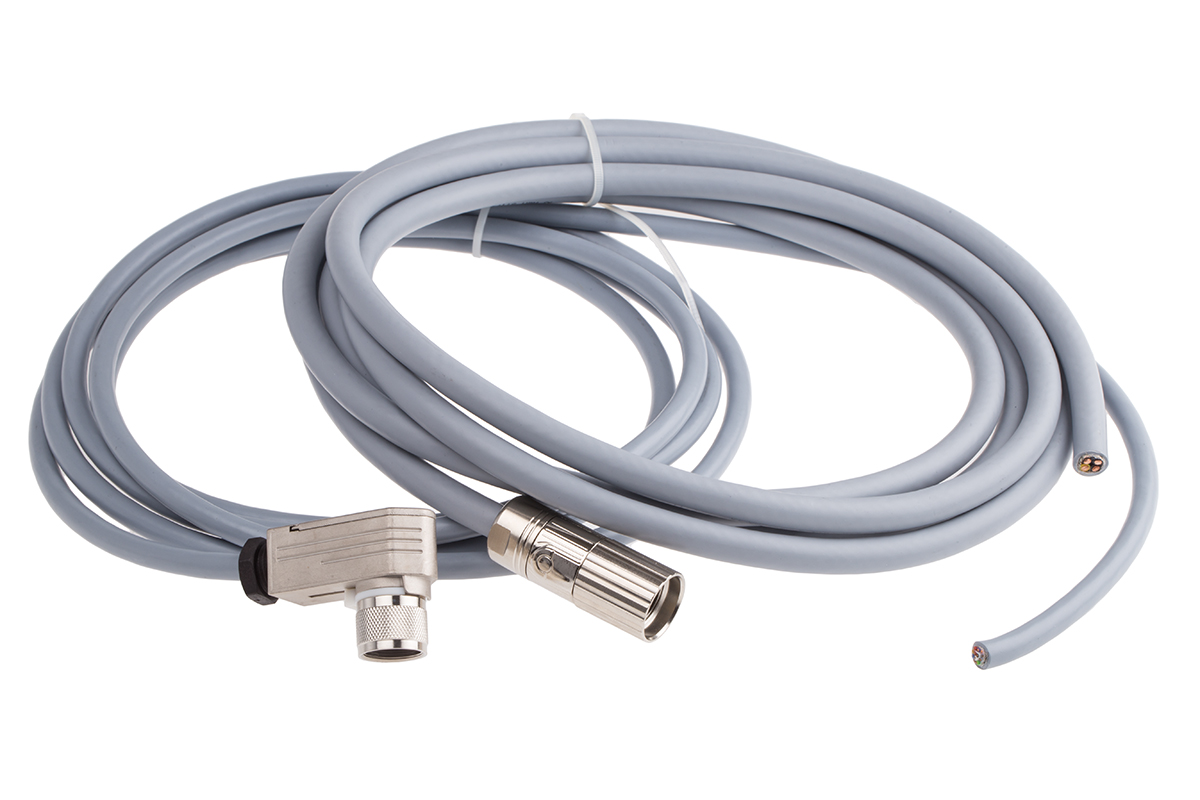

SKF Power/Communication Cable Kit for BG45 and BG75 Series SKF power/communication cable required to wire the motor to supply, PLC or switches. Designed for use with the CASM-32 (3 m length 8802107, 10 m length 8802100 ), and CASM-40 (3 m length 1223468, 10 m length 1223469 ) Features and Benefits •Links power and communication to PLC •Input/Output digital •Round M12 plug connection •IP54 rating •24 V dc •Operating temperature 0° to 50°C •Available in 3 m and 10 m lengths Application Information Designed for use with the SKF CASM BG45 (CASM 32) and BG75 (CASM 40) series. Plug-Pin Connection Lead colour in connection cable with 12-pin connector A OUT1 Orange B IN0 Yellow C IN1 Blue D Uc + 24V DC Green E + F Ue + 12/24V DC Red G + M GND Black H IN4 Violet J IN3 Pink K OUT2 White L IN2 Brown Note Cable has no plug, customer to wire into power supply Standards DIN 45326 SKF Easy 3, CARE 33, MATRIX, CASM and CAHB Actuators Compact design Overload protection Various stroke lengths and movement of loads up to 50kg Ideally suited to opening and closing doors, flaps and windows which are not within easy reach of users Can be operated without limit switches
