Manufacturer : Panasonic
Manufacturer Part No : AV454461
Enrgtech Part No : ET16750284
Product Range : PolySwitch RXEF Series

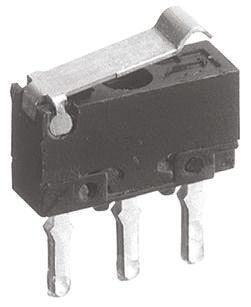

SPDT Simulated Roller Lever Microswitch, 100 mA @ 30 V dc

AV4 Superminiature Snap Action Microswitch These superminiature microswitches are some of the smallest snap-action switches in the world. Terminal variants include solder and straight, right and left angled PCB. Typical aplications include compact visual equipment, small sized audio equipment and office automation equipment. Superminature size, only 4.5 x 7.5 x 4.5 mm (PCB), 6.6 x 7.5 x 4.5 mm (solder) Lightweight, 0.2g (PCB), 0.3g (solder) Can be mounted close together in any direction Switch type: Switch SPDT Connection: Spade cable shoes 6.3 ´ 0.8 mm, 189157: although 4.8 ´ 0.5 mm Switch material: Silver Mechanical life: 30 ´ 10 6 functions at max. contact load Temp. range: -55°C* to +85°C Dimensions: See drawings

Product Information

Operating Force : 0.29 N
Minimum Operating Temperature : -25°C
IP Rating : IP40
Contact Current Rating : 100 mA @ 30 V dc
Operating Temperature Range : -25 → +80°C
Contact Configuration : SPDT
Actuator Type : Simulated Roller Lever
Mechanical Life : 3 x 10^5Operations
Maximum Operating Temperature : +80°C
Terminal Type : Right Angle PCB
rohs : RoHS Certificate of Compliance
Contact Material : Gold Plated
