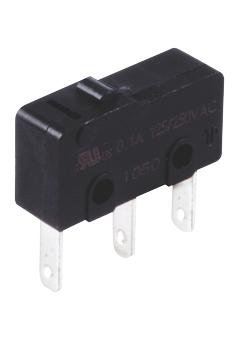

SPDT Pin Plunger Snap Action Micro Switch, 100 mA @ 125 / 250 V ac

LCA01150P00PC SPDT Pin Plunger Snap Action Micro Switch, 100 mA @ 125 / 250 V ac
C & K

Product Information

Operating Force:
150 g
Standards Met:
cULus Recognized, ENEC, UL
Voltage Rating:
250V ac
Contact Current Rating:
100 mA @ 125 / 250 V ac
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +125°C
Contact Configuration:
SP-CO
Case Material:
Thermoplastic Polyester PET
Actuator Type:
Pin Plunger
Maximum Operating Temperature:
+125°C
Terminal Type:
Pc Pin
Contact Material:
Copper Alloy
Operating Force:
150gf
RoHS Status:
ROHS3 Compliant
Electrical Life:
1,000,000 Cycles
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 125°C
Mechanical Life:
-
Differential Travel:
0.008" (0.2mm)
title:
LCA01150P00PC
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
Overtravel:
0.015" (0.4mm)
Manufacturer:
C&K
Pretravel:
0.043" (1.1mm)
Switch Function:
On-Mom
Operating Position:
0.340" (8.6mm)
Circuit:
SPDT
Current Rating (Amps):
100mA (AC)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
LCA
Packaging:
Bulk
Actuator Type:
Round (Pin Plunger)
Release Force:
25gf
RoHs Compliant
Checking for live stock

This is SPDT Pin Plunger Snap Action Micro Switch 100 mA @ 125 / 250 V ac manufactured by C & K. The manufacturer part number is LCA01150P00PC. It has a 150 g of operating force. The product complies with all safety standards, such as culus recognized, enec, ul. Moreover, the product has a nominal 250v ac voltage rating. The rated contact current is 100 ma @ 125 / 250 v ac. Whereas, the minimum operating temperature of the product is -40°c. The product has -40 → +125°c of operating temperature range. The contact is equipped with sp-co configuration. The casing is constructed from highly stable thermoplastic polyester pet material. The product carries pin plunger actuator. It has a maximum operating temperature of +125°c. The terminal is a pc pin type. The product is made from sturdy copper alloy materials. It has a 150gf of operating force. The product is rohs3 compliant. The product offers long-lasting services of 1,000,000 cycles. Moreover, it has pc pin terminal style. The product has -40°c ~ 125°c operating temperature range. Whereas, it also has a 0.008" (0.2mm) of differential travel. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. The given overtravel figures include 0.015" (0.4mm). The c&k's product offers user-desired applications. While the pretravel value is 0.043" (1.1mm). It is designed as a on-mom switching function. It has the given operating position of 0.340" (8.6mm). It has an integral spdt circuit. Additionally, the product's output is 100ma (ac). The product is available in through hole configuration. The product lca, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries round (pin plunger) actuator. It carries a release force of 25gf.
