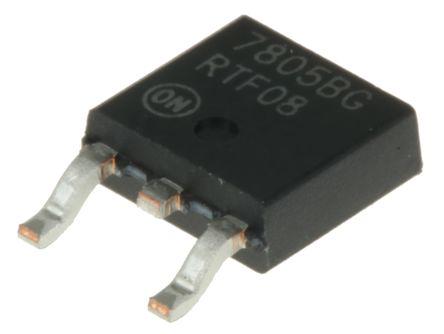

ON Semiconductor MC7805BDTG Linear Voltage Regulator, 2.2A, 5 V, ±4% 3-Pin, DPAK
Product Information
Polarity:
Positive
Dimensions:
6.73 x 6.22 x 2.38mm
Width:
6.22mm
Accuracy:
±4%
Typical Dropout Voltage @ Current:
2 V @ 1 A
Load Regulation:
100 mV
Output Type:
Fixed
Package Type:
DPAK
Maximum Operating Temperature:
+125 °C
Quiescent Current:
3.2mA
Number of Outputs:
1
Line Regulation:
100 mV
Length:
6.73mm
Pin Count:
3
Mounting Type:
Surface Mount
Series:
MC78xx
Height:
2.38mm
Output Voltage:
5 V
Minimum Operating Temperature:
-40 °C
Maximum Output Current:
2.2A
Maximum Input Voltage:
35 V
Checking for live stock
FAQs
Yes. You can also search MC7805BDTG on website for other similar products.
We accept all major payment methods for all products including ET16727504. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with MC7805BDTG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Linear Voltage Regulators category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semiconductor MC7805BDTG Linear Voltage Regulator, 2.2A, 5 V, ±4% 3-Pin, DPAK. You can also check on our website or by contacting our customer support team for further order details on ON Semiconductor MC7805BDTG Linear Voltage Regulator, 2.2A, 5 V, ±4% 3-Pin, DPAK.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16727504 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16727504.
Yes. We ship MC7805BDTG Internationally to many countries around the world.
This is Linear Voltage Regulator 2.2A 5 V ±4% 3-Pin DPAK manufactured by ON Semiconductor. The manufacturer part number is MC7805BDTG. While providing positive polarity. The given dimensions of the product include 6.73 x 6.22 x 2.38mm. Furthermore, the product is 6.22mm wide. It provides high accuracy of ±4%. It has a 2 v @ 1 a typical dropout voltage @ current . Load Regulation - 100 mv. Furthermore, it has afixed output. The package is a sort of dpak. It has a maximum operating temperature of +125 °c. Supplied with 3.2ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 100 mv. Its accurate length is 6.73mm. It contains 3 pins. The product is available in surface mount configuration. The product mc78xx, is a highly preferred choice for users. In addition, the height is 2.38mm. Features a 5 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 2.2a of maximum output current. 35 v is the maximum voltage of the bespoke product.
