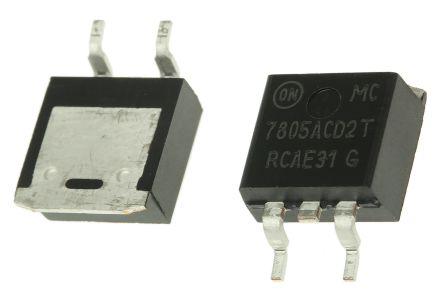

ON Semiconductor MC7805ACD2TG Linear Voltage Regulator, 2.2A, 5 V, ±2% 3-Pin, D2PAK

MC7805ACD2TG ON Semiconductor Linear Voltage Regulator, 2.2A, 5 V, ±2% 3-Pin, D2PAK
ON Semiconductor

Product Information

Polarity:
Positive
Dimensions:
10.24 x 9.35 x 30.02mm
Width:
9.35mm
Accuracy:
±2%
Typical Dropout Voltage @ Current:
2 V @ 1 A
Load Regulation:
25 mV
Output Type:
Fixed
Package Type:
D2PAK
Maximum Operating Temperature:
+125 °C
Quiescent Current:
3.2mA
Number of Outputs:
1
Line Regulation:
10 mV
Length:
10.24mm
Pin Count:
3
Mounting Type:
Surface Mount
Series:
MC78xx
Height:
30.02mm
Output Voltage:
5 V
Minimum Operating Temperature:
0 °C
Maximum Output Current:
2.2A
Maximum Input Voltage:
35 V
RoHs Compliant
Checking for live stock

This is Linear Voltage Regulator 2.2A 5 V ±2% 3-Pin D2PAK manufactured by ON Semiconductor. The manufacturer part number is MC7805ACD2TG. While providing positive polarity. The given dimensions of the product include 10.24 x 9.35 x 30.02mm. Furthermore, the product is 9.35mm wide. It provides high accuracy of ±2%. It has a 2 v @ 1 a typical dropout voltage @ current . Load Regulation - 25 mv. Furthermore, it has afixed output. The package is a sort of d2pak. It has a maximum operating temperature of +125 °c. Supplied with 3.2ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 10 mv. Its accurate length is 10.24mm. It contains 3 pins. The product is available in surface mount configuration. The product mc78xx, is a highly preferred choice for users. In addition, the height is 30.02mm. Features a 5 v output voltage. Whereas, the minimum operating temperature of the product is 0 °c. Featuring 2.2a of maximum output current. 35 v is the maximum voltage of the bespoke product.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
