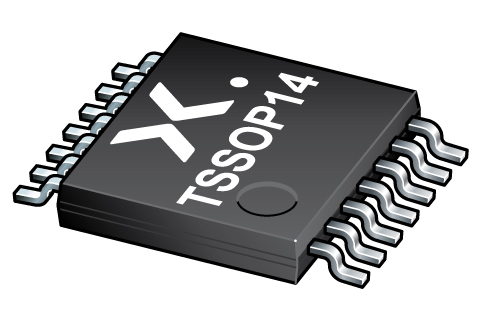

Quad AND Gate 2-Input CMOS TSSOP14

74LVC08APW-118 Quad AND Gate 2-Input CMOS TSSOP14
Nexperia

Product Information

Maximum Low Level Output Current:
24mA
Dimensions:
5.1 x 4.5 x 0.95mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
10.4 ns @ 50 pF
Minimum Operating Supply Voltage:
1.2 V
Logic Function:
AND
Output Type:
Single Ended
Maximum High Level Output Current:
-24mA
Package Type:
TSSOP
Logic Family:
74LVC
Input Type:
TTL
IC Type:
Logic Gate IC
Maximum Operating Supply Voltage:
3.6 V
Pin Count:
14
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Quad AND Gate 2-Input CMOS TSSOP14 manufactured by Nexperia. The manufacturer part number is 74LVC08APW,118. On the other hand, it is featured with 24ma of max. low level output current. The given dimensions of the product include 5.1 x 4.5 x 0.95mm. The product is available in surface mount configuration. It provides up to 10.4 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 1.2 v. The primary function of logic includes and. Furthermore, it has asingle ended output. While a -24ma of maximum high level output current. The package is a sort of tssop. The logic family is 74lvc. It carries ttl input type. Additionally, it includes logic gate ic type IC . It has 3.6 v maximum operating supply voltage. It contains 14 pins. Features 50pf of propagation delay test condition.

pdf icon
Datasheet(Technical Reference)
