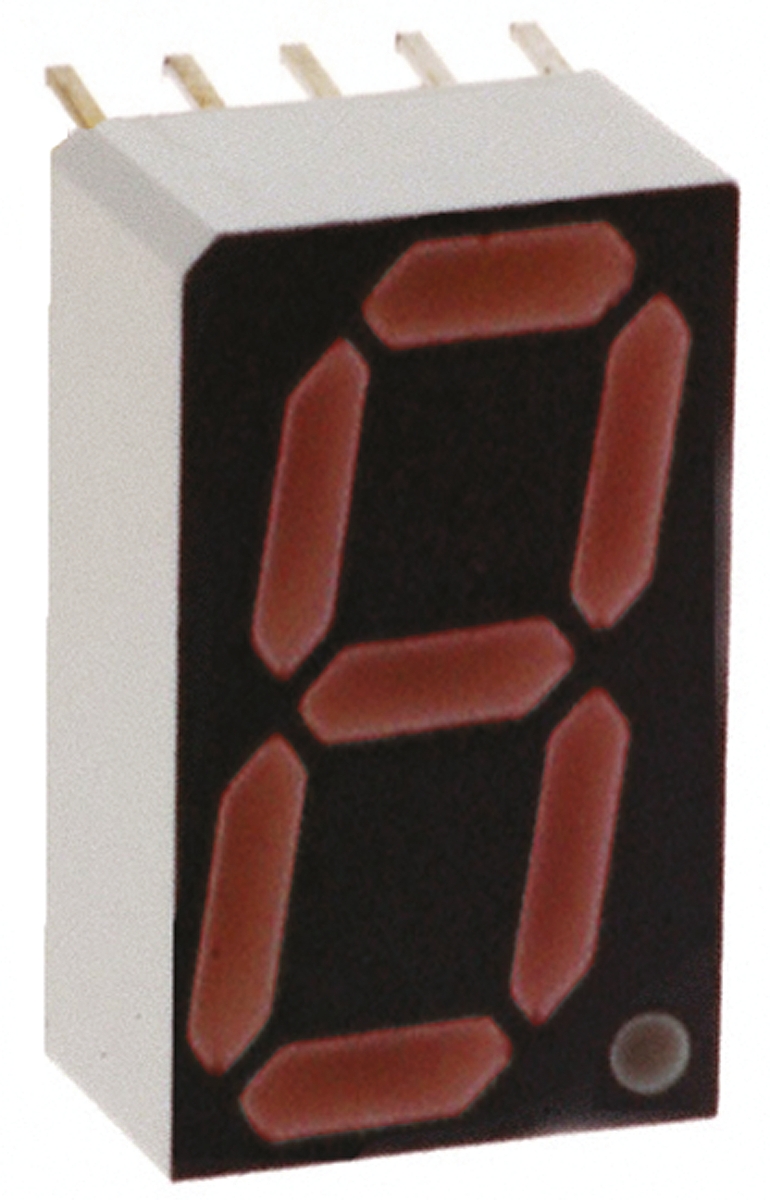

Broadcom HDSP-H151 7-Segment LED Display, CA Red 16 mcd RH DP 14.2mm

HDSP-H151 Broadcom  7-Segment LED Display, CA Red 16 mcd RH DP 14.2mm
Broadcom

Product Information

Dominant Wavelength:
637 nm
Forward Current:
40mA
Common Connection:
Anode
Character Width:
7.8mm
External Depth:
17mm
Forward Voltage:
1.8 V
Luminous Intensity:
16 mcd
Maximum Operating Temperature:
+100°C
Colour of Face:
Grey
Operating Temperature Range:
-20 → +100°C
Character Height:
14.2mm
Number of Segments:
7
External Dimensions:
12.573 x 17.02 x 8mm
Display Type:
7-Segment
Mounting Type:
Through Hole
Number of Characters:
1
Minimum Operating Temperature:
-20°C
LED Colours:
Red
Decimal Orientation:
Right Side
External Height:
8mm
External Width:
12.6mm
RoHs Compliant
Checking for live stock

This is 7-Segment LED Display CA Red 16 mcd RH DP 14.2mm manufactured by Broadcom. The manufacturer part number is HDSP-H151. It has a dominant wavelength of 637 nm. It features 40ma forward current. It has a common anode connection . In addition, it has about 7.8mm character width . It has an external depth of 17mm. The forward voltage is 1.8 v. It has 16 mcd of luminous intensity. It has a maximum operating temperature of +100°c. It is created with a grey colour face . The product has -20 → +100°c of operating temperature range. It has a standard 14.2mm character in height . It includes 7 segments . Features 12.573 x 17.02 x 8mm external caliber. It features a remarkable 7-segment display. The product is available in through hole configuration. Consists of 1 characters. Whereas, the minimum operating temperature of the product is -20°c. The LED has a classic red colours. Its decimal orientation is to the right side . While its external height is 8mm. The product is 12.6mm wide.
