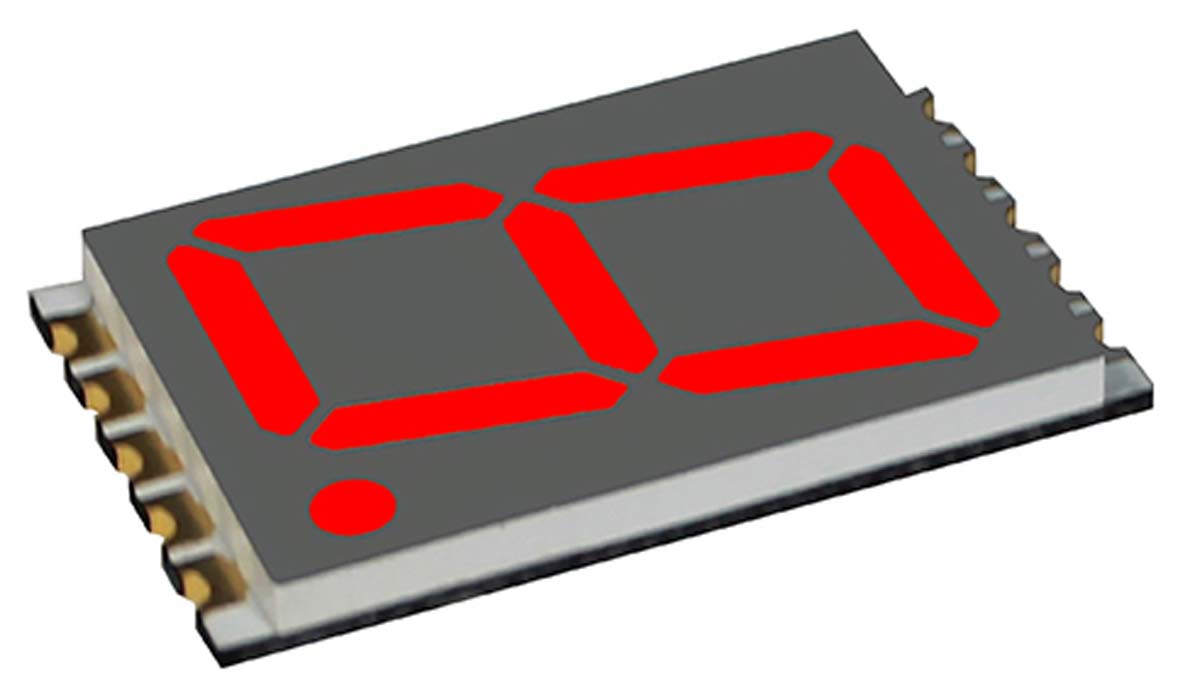

VCC DSM7UA56101 7-Segment LED Display, CA Red 40 mcd RH DP 14.2mm
Product Information
Dominant Wavelength:
629 nm
For Use With:
DSM Series PCB, DSM Series Socket
Forward Current:
25mA
Common Connection:
Anode
Character Width:
8.1mm
External Depth:
2.1mm
Forward Voltage:
2.6 V
Luminous Intensity:
40 mcd
Maximum Operating Temperature:
+105°C
Colour of Face:
Grey
Operating Temperature Range:
-40 → +105°C
Character Height:
14.2mm
Number of Segments:
7
External Dimensions:
20 x 12.5 x 2.1mm
Display Type:
7-Segment
Mounting Type:
Surface Mount
Series:
DSM
Number of Characters:
1
Power Dissipation:
70mW
Minimum Operating Temperature:
-40°C
LED Colours:
Red
Decimal Orientation:
Right Side
External Height:
20mm
External Width:
12.5mm
Checking for live stock
FAQs
Yes. You can also search DSM7UA56101 on website for other similar products.
We accept all major payment methods for all products including ET16790614. Please check your shopping cart at the time of order.
You can order VCC brand products with DSM7UA56101 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in LED Displays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of VCC DSM7UA56101 7-Segment LED Display, CA Red 40 mcd RH DP 14.2mm. You can also check on our website or by contacting our customer support team for further order details on VCC DSM7UA56101 7-Segment LED Display, CA Red 40 mcd RH DP 14.2mm.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16790614 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "VCC" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16790614.
Yes. We ship DSM7UA56101 Internationally to many countries around the world.
This is 7-Segment LED Display CA Red 40 mcd RH DP 14.2mm manufactured by VCC. The manufacturer part number is DSM7UA56101. It has a dominant wavelength of 629 nm. The product is highly suitable for dsm series pcb, dsm series socket. It features 25ma forward current. It has a common anode connection . In addition, it has about 8.1mm character width . It has an external depth of 2.1mm. The forward voltage is 2.6 v. It has 40 mcd of luminous intensity. It has a maximum operating temperature of +105°c. It is created with a grey colour face . The product has -40 → +105°c of operating temperature range. It has a standard 14.2mm character in height . It includes 7 segments . Features 20 x 12.5 x 2.1mm external caliber. It features a remarkable 7-segment display. The product is available in surface mount configuration. The product dsm, is a highly preferred choice for users. Consists of 1 characters. It has about 70mw power dissipation . Whereas, the minimum operating temperature of the product is -40°c. The LED has a classic red colours. Its decimal orientation is to the right side . While its external height is 20mm. The product is 12.5mm wide.
