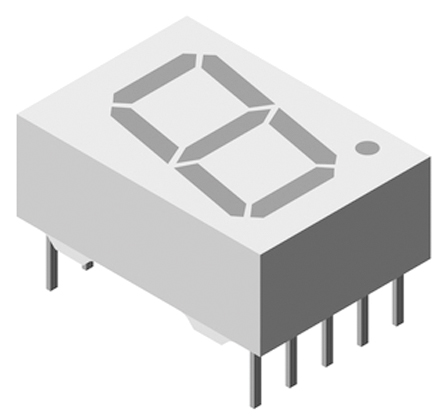

Vishay TDSR1060 7-Segment LED Display, CC Red 3.6 mcd RH DP 10mm

TDSR1060 Vishay 7-Segment LED Display, CC Red 3.6 mcd RH DP 10mm
TDSR1060 Vishay 7-Segment LED Display, CC Red 3.6 mcd RH DP 10mm
Vishay

Product Information

Dominant Wavelength:
640 nm
Forward Current:
10mA
Common Connection:
Cathode
Character Width:
6mm
Forward Voltage:
1.8V
Luminous Intensity:
3.6mcd
Product Type:
LED Display
Maximum Operating Temperature:
85°C
Colour of Face:
Grey
Character Height:
10mm
LED Colour:
Red
Number of Characters:
1
Standards/Approvals:
RoHS Directive 2002/95/EC, WEEE 2002/96/EC
Mount Type:
Through Hole
Display Type:
7 Segment
Series:
Low current
Number of Segments:
7
Power Dissipation:
185mW
Minimum Operating Temperature:
-40°C
Decimal Orientation:
Right Side
External Height:
7mm
External Width:
9.7mm
RoHs Compliant
Checking for live stock

This is 7-Segment LED Display CC Red 3.6 mcd RH DP 10mm manufactured by Vishay. The manufacturer part number is TDSR1060. It has a dominant wavelength of 640 nm. It features 10ma forward current. It has a common cathode connection . In addition, it has about 6mm character width . The forward voltage is 1.8v. It has 3.6mcd of luminous intensity. led display is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 85°c. It is created with a grey colour face . It has a standard 10mm character in height . The LED has an adorable red colour. Consists of 1 characters. It has a through hole type mount . It features a remarkable 7 segment display. The product low current, is a highly preferred choice for users. It includes 7 segments . It has about 185mw power dissipation . Whereas, the minimum operating temperature of the product is -40°c. Its decimal orientation is to the right side . While its external height is 7mm. The product is 9.7mm wide.

pdf icon
NOTICE – This product is not for general use by consumers(Technical Reference)
pdf icon
TDSR1050, TDSR1060 High Intensity Red Low Current Seven Segment Display Data Sheet(Technical Reference)
