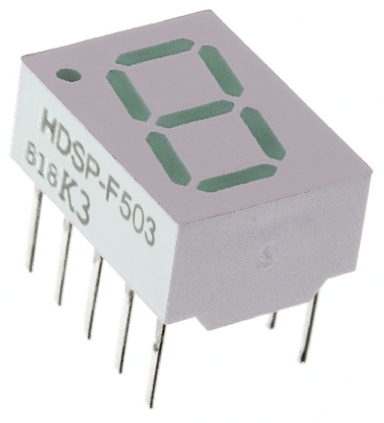

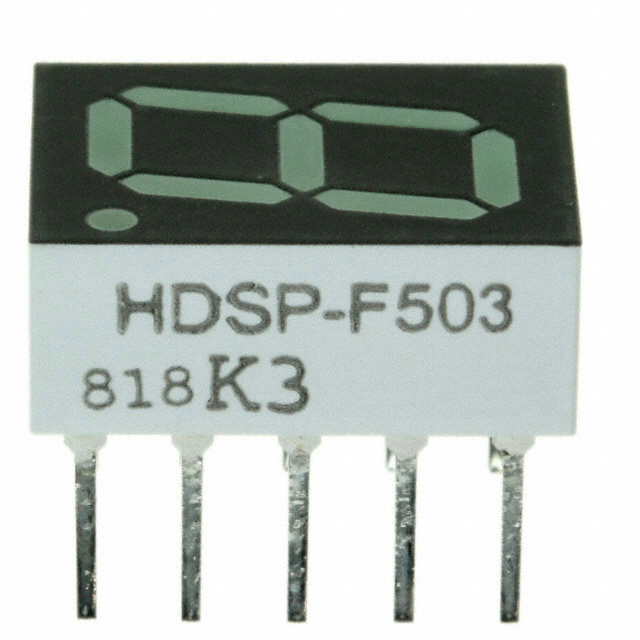

Broadcom HDSP-F503 7-Segment LED Display, CC Green 3.5 mcd RH DP 10.16mm

HDSP-F503 Broadcom 7-Segment LED Display, CC Green 3.5 mcd RH DP 10.16mm
HDSP-F503
HDSP-F503 Broadcom 7-Segment LED Display, CC Green 3.5 mcd RH DP 10.16mm
Broadcom

Product Information

Dominant Wavelength:
571 nm
Forward Current:
30mA
Common Connection:
Cathode
Character Width:
5.6mm
External Depth:
6.4mm
Forward Voltage:
2.1V
Luminous Intensity:
3.5mcd
Product Type:
LED Display
Maximum Operating Temperature:
-40°C
Colour of Face:
Grey
Character Height:
10.2mm
LED Colour:
Green
Number of Characters:
1
Standards/Approvals:
RoHS
Mount Type:
Through Hole
Display Type:
7 Segment
Number of Segments:
7
Minimum Operating Temperature:
100°C
Decimal Orientation:
Right Side
External Height:
12.9mm
External Width:
9.8mm
RoHs Compliant
Checking for live stock

This is 7-Segment LED Display CC Green 3.5 mcd RH DP 10.16mm manufactured by Broadcom. The manufacturer part number is HDSP-F503. It has a dominant wavelength of 571 nm. It features 30ma forward current. It has a common cathode connection . In addition, it has about 5.6mm character width . It has an external depth of 6.4mm. The forward voltage is 2.1v. It has 3.5mcd of luminous intensity. led display is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of -40°c. It is created with a grey colour face . It has a standard 10.2mm character in height . The LED has an adorable green colour. Consists of 1 characters. It has a through hole type mount . It features a remarkable 7 segment display. It includes 7 segments . Whereas, the minimum operating temperature of the product is 100°c. Its decimal orientation is to the right side . While its external height is 12.9mm. The product is 9.8mm wide.

pdf icon
HDSP-Fxxx Series Datasheet(Technical Reference)
