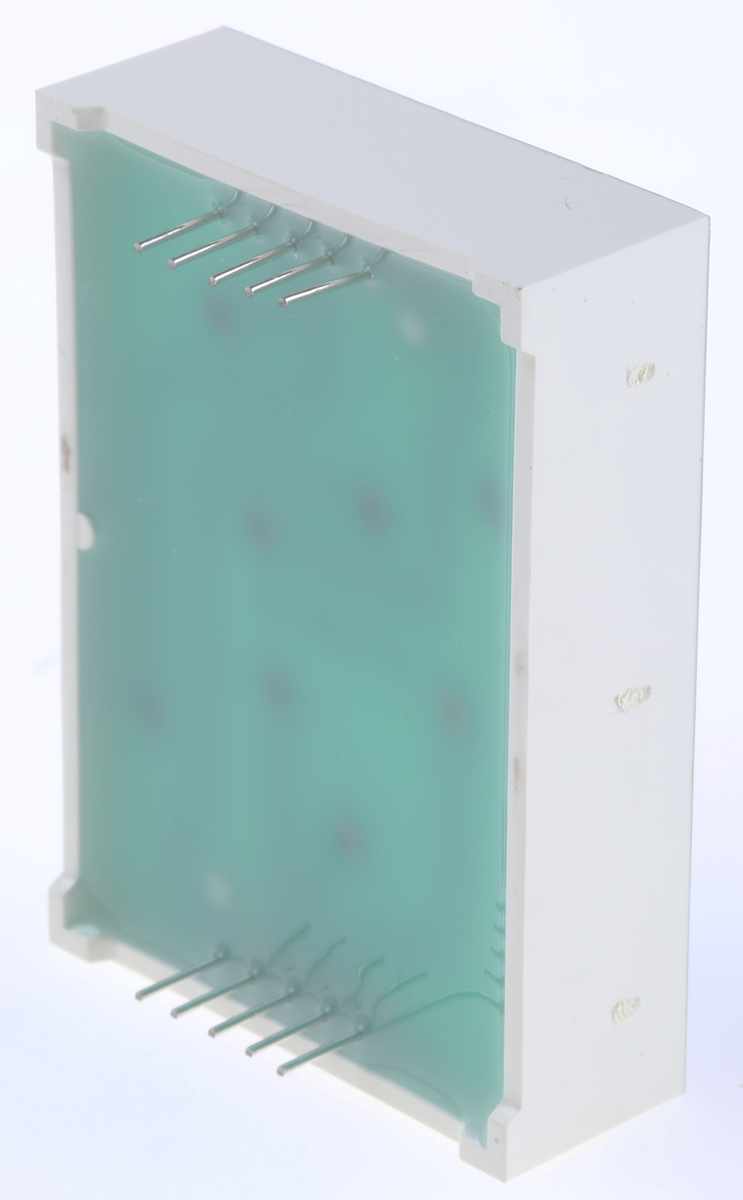

Kingbright SC15-11SRWA 7-Segment LED Display, CC Red 60 mcd RH DP 38mm

SC15-11SRWA Kingbright  7-Segment LED Display, CC Red 60 mcd RH DP 38mm
SC15-11SRWA
Kingbright

Product Information

Dominant Wavelength:
640 nm
Forward Current:
30mA
Common Connection:
Cathode
Character Width:
22mm
External Depth:
12.5mm
Forward Voltage:
1.85 V, 3.7 V
Luminous Intensity:
60 mcd
Maximum Operating Temperature:
+85°C
Colour of Face:
Grey
Operating Temperature Range:
-40 → +85°C
Character Height:
38mm
Number of Segments:
7
External Dimensions:
47 x 33.15 x 12.5mm
Display Type:
7-Segment
Mounting Type:
Through Hole
Number of Characters:
1
Power Dissipation:
75 mW, 150 mW
Minimum Operating Temperature:
-40°C
LED Colours:
Red
Decimal Orientation:
Right Side
External Height:
47mm
External Width:
33.2mm
RoHs Compliant
Checking for live stock

This is 7-Segment LED Display CC Red 60 mcd RH DP 38mm manufactured by Kingbright. The manufacturer part number is SC15-11SRWA. It has a dominant wavelength of 640 nm. It features 30ma forward current. It has a common cathode connection . In addition, it has about 22mm character width . It has an external depth of 12.5mm. The forward voltage is 1.85 v, 3.7 v. It has 60 mcd of luminous intensity. It has a maximum operating temperature of +85°c. It is created with a grey colour face . The product has -40 → +85°c of operating temperature range. It has a standard 38mm character in height . It includes 7 segments . Features 47 x 33.15 x 12.5mm external caliber. It features a remarkable 7-segment display. The product is available in through hole configuration. Consists of 1 characters. It has about 75 mw, 150 mw power dissipation . Whereas, the minimum operating temperature of the product is -40°c. The LED has a classic red colours. Its decimal orientation is to the right side . While its external height is 47mm. The product is 33.2mm wide.
