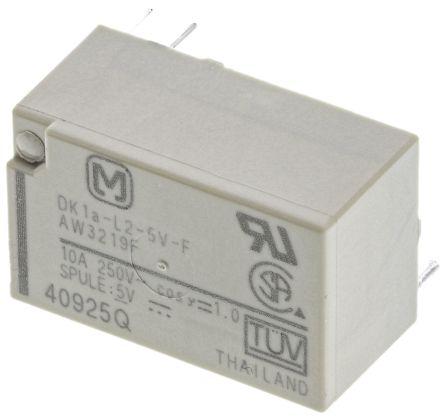

SPST PCB Mount Latching Relay 10 A, 5V dc For Use In Power Applications
Product Information
Dimensions:
20 x 9.7 x 12.5mm
Coil Voltage:
5V dc
Application:
Power
Coil Resistance:
125
Life:
50000000 (Mechanical) cycles
Coil Power:
200mW
Maximum Switching Voltage DC:
125V dc
Maximum Switching Power DC:
300 W
Isolation Coil To Contact:
4kV rms
Maximum Operating Temperature:
+65°C
Terminal Type:
Through Hole
Operating Temperature Range:
-40 → +65°C
Switching Current:
10 A
Contact Configuration:
SPST
Depth:
12.5mm
Mounting Type:
PCB Mount
Length:
20mm
Height:
9.7mm
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
2.5 kVA
Contact Material:
Gold Plated
Checking for live stock
FAQs
Yes. You can also search DK1AL25 on website for other similar products.
We accept all major payment methods for all products including ET16750353. Please check your shopping cart at the time of order.
You can order Panasonic brand products with DK1AL25 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Latching Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SPST PCB Mount Latching Relay 10 A, 5V dc For Use In Power Applications. You can also check on our website or by contacting our customer support team for further order details on SPST PCB Mount Latching Relay 10 A, 5V dc For Use In Power Applications.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16750353 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16750353.
Yes. We ship DK1AL25 Internationally to many countries around the world.
This is SPST PCB Mount Latching Relay 10 A 5V dc For Use In Power Applications manufactured by Panasonic. The manufacturer part number is DK1AL25. The given dimensions of the product include 20 x 9.7 x 12.5mm. The coil voltage of the product is 5v dc. Applications Information involves power. It holds up to 125 <ohm/> coil resistance. It is capable of doing 50000000 (mechanical) cycles in a lifetime . Robust coil power of 200mw. While it carries 125v dc of maximum DC switching voltage. It bears a maximum 300 w of DC switching power. The product has 4kv rms isolation coil to contact. It has a maximum operating temperature of +65°c. The terminal is a through hole type. The product has -40 → +65°c of operating temperature range. It is integrated with 10 a switching current. The contact is equipped with spst configuration. The product comes in 12.5mm depth. The product is available in pcb mount configuration. Its accurate length is 20mm. In addition, the height is 9.7mm. It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 2.5 kva. The product is made from sturdy gold plated materials.
