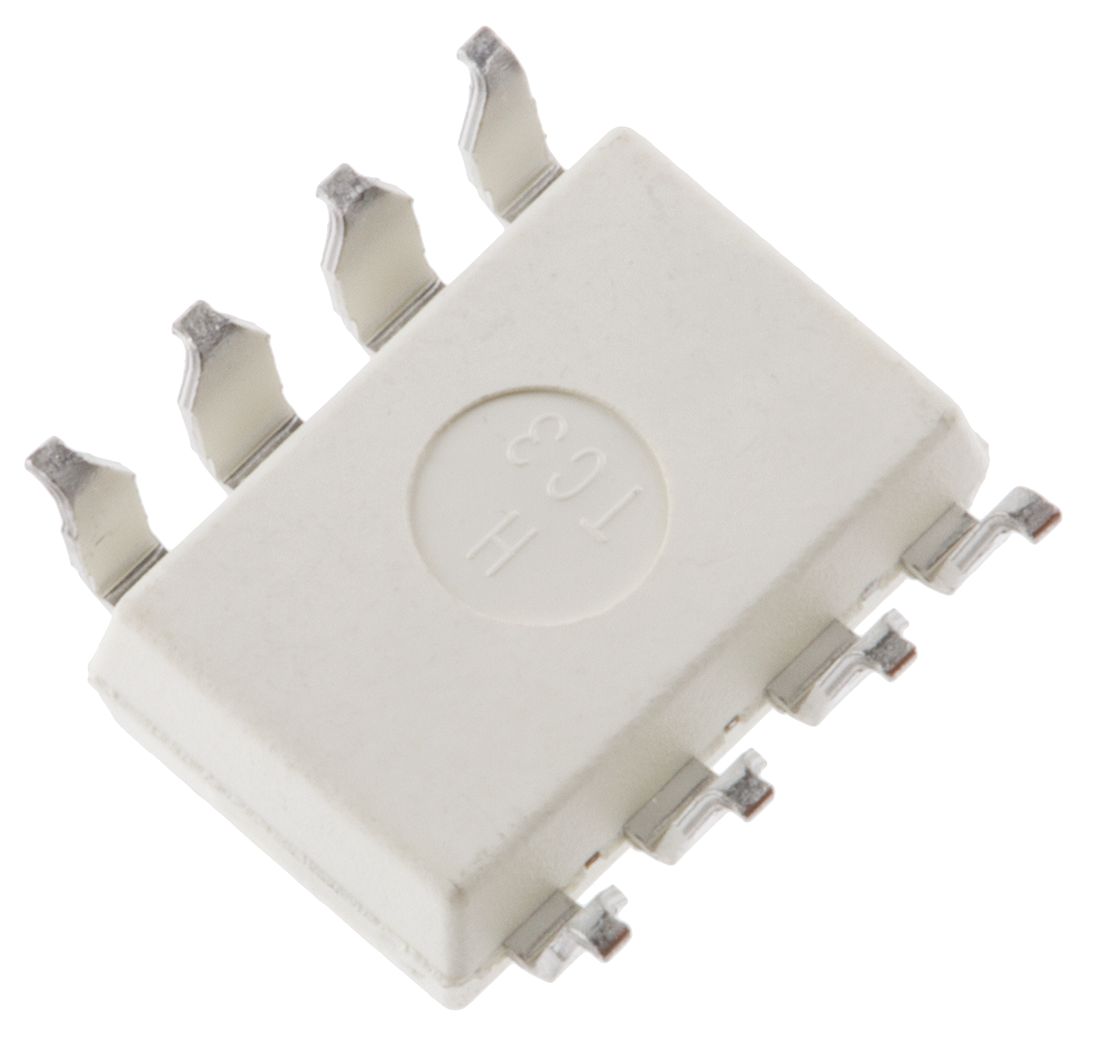

Broadcom HCPL-7840-300E, Isolation Amplifier, 5 V, 8-Pin PDIP SMD

HCPL-7840-300E Broadcom , Isolation Amplifier, 5 V, 8-Pin PDIP SMD
HCPL-7840-300E
Broadcom

Product Information

Dimensions:
3.56 x 9.8 x 6.35mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Number of Channels per Chip:
1
Isolation Mode Rejection:
76.1dB
Maximum Voltage Gain:
18.49dB
Height:
3.56mm
Typical Single Supply Voltage:
5 V
Width:
6.35mm
Length:
9.8mm
Package Type:
PDIP SMD
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Isolation Amplifier 5 V 8-Pin PDIP SMD manufactured by Broadcom. The manufacturer part number is HCPL-7840-300E. The given dimensions of the product include 3.56 x 9.8 x 6.35mm. The product is available in surface mount configuration. It is a type of single power supply. It comprises 1 channels per chip. Furthermore, it has 76.1db isolation mode rejection . It has a maximum 18.49db voltage gain . In addition, the height is 3.56mm. It has a typical single supply voltage of 5 v. Furthermore, the product is 6.35mm wide. Its accurate length is 9.8mm. The package is a sort of pdip smd. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It contains 8 pins.

pdf icon
HCPL-7840-300E Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search HCPL-7840-300E on website for other similar products.
We accept all major payment methods for all products including ET13945996. Please check your shopping cart at the time of order.
You can order Broadcom brand products with HCPL-7840-300E directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Isolation Amplifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Broadcom HCPL-7840-300E, Isolation Amplifier, 5 V, 8-Pin PDIP SMD. You can also check on our website or by contacting our customer support team for further order details on Broadcom HCPL-7840-300E, Isolation Amplifier, 5 V, 8-Pin PDIP SMD.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13945996 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Broadcom" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13945996.
Yes. We ship HCPL-7840-300E Internationally to many countries around the world.
