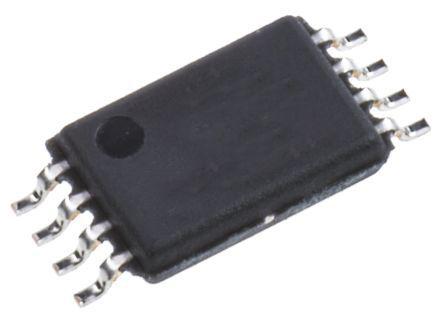

Toshiba TC7WZ05FU Triple Inverter, 8-Pin SOT-505
Product Information
Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Dimensions:
2.9 x 2.8 x 1.95mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
10.5 ns @ 50 pF
Minimum Operating Supply Voltage:
1.65 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Output Type:
Open Drain
Height:
1.95mm
Width:
2.8mm
Length:
2.9mm
Package Type:
SOT-505
Logic Family:
LMOS
Input Type:
CMOS
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Number of Elements per Chip:
3
Checking for live stock
FAQs
Yes. You can also search TC7WZ05FU on website for other similar products.
We accept all major payment methods for all products including ET16896604. Please check your shopping cart at the time of order.
You can order Toshiba brand products with TC7WZ05FU directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Inverters ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Toshiba TC7WZ05FU Triple Inverter, 8-Pin SOT-505. You can also check on our website or by contacting our customer support team for further order details on Toshiba TC7WZ05FU Triple Inverter, 8-Pin SOT-505.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16896604 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Toshiba" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16896604.
Yes. We ship TC7WZ05FU Internationally to many countries around the world.
This is Triple Inverter 8-Pin SOT-505 manufactured by Toshiba. The manufacturer part number is TC7WZ05FU. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. The given dimensions of the product include 2.9 x 2.8 x 1.95mm. The product is available in surface mount configuration. It provides up to 10.5 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. Furthermore, it has aopen drain output. In addition, the height is 1.95mm. Furthermore, the product is 2.8mm wide. Its accurate length is 2.9mm. The package is a sort of sot-505. The logic family is lmos. It carries cmos input type. It has 5.5 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 8 pins. It consists of 3 elements per chip.
