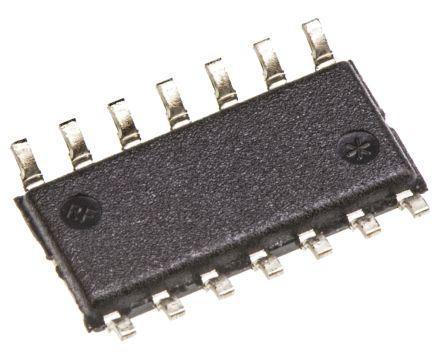

This is Hex Schmitt Trigger Inverter 2 → 6 V 14-Pin SOIC manufactured by ON Semiconductor. The manufacturer part number is MC74HC14ADG. On the other hand, it is featured with 5.2ma of max. low level output current. While a -5.2ma of maximum high level output current. The given dimensions of the product include 8.75 x 4 x 1.5mm. The product is available in surface mount configuration. It provides up to 13 ns @ 6 v, 15 ns @ 4.5 v, 30 ns @ 3 v, 75 ns @ 2 v maximum propagation delay time. While its minimum operating supply voltage is 2 v. Whereas, the minimum operating temperature of the product is -55 °c. The primary function of logic includes inverter. Features 50pf of propagation delay test condition. The logic family is hc. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 8.75mm. The package is a sort of soic. It consists of 6 elements per chip. It carries schmitt trigger input type. Schmitt Trigger Input - yes. It has a maximum operating temperature of +125 °c. It contains 14 pins. It has 6 v maximum operating supply voltage.
